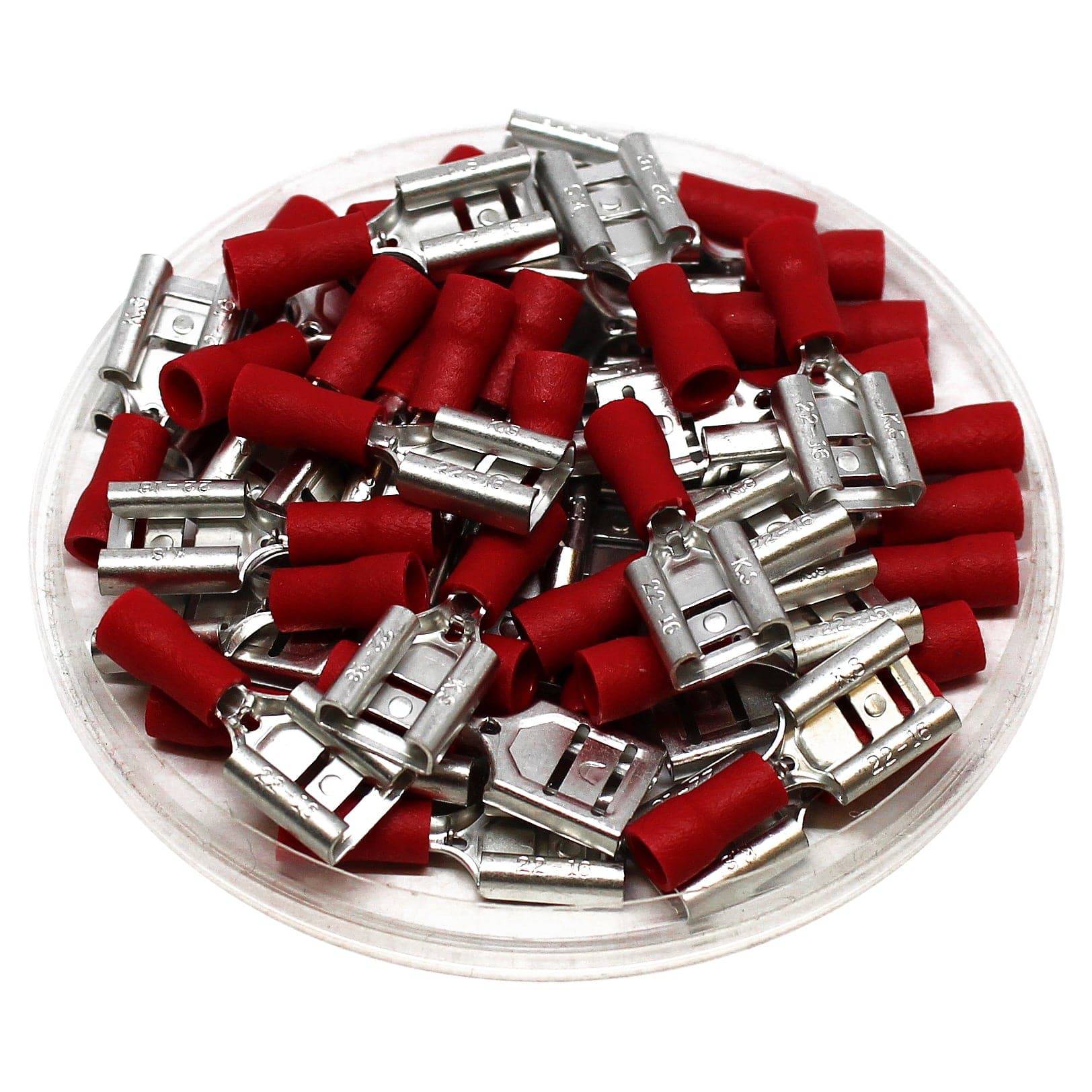

FDV1-312 - 22-16AWG Female Quick Disconnects - Vinyl
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| Terminal Insulation: | Vinyl |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8 x 8.0mm (0.03 x 0.31") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| T: | 0.40mm (0.02") |
| L: | 24.2mm (0.95") |
| F: | 10.0mm (0.39") |
| B: | 10.0mm (0.39") |
| W: | 8.2mm (0.32") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
