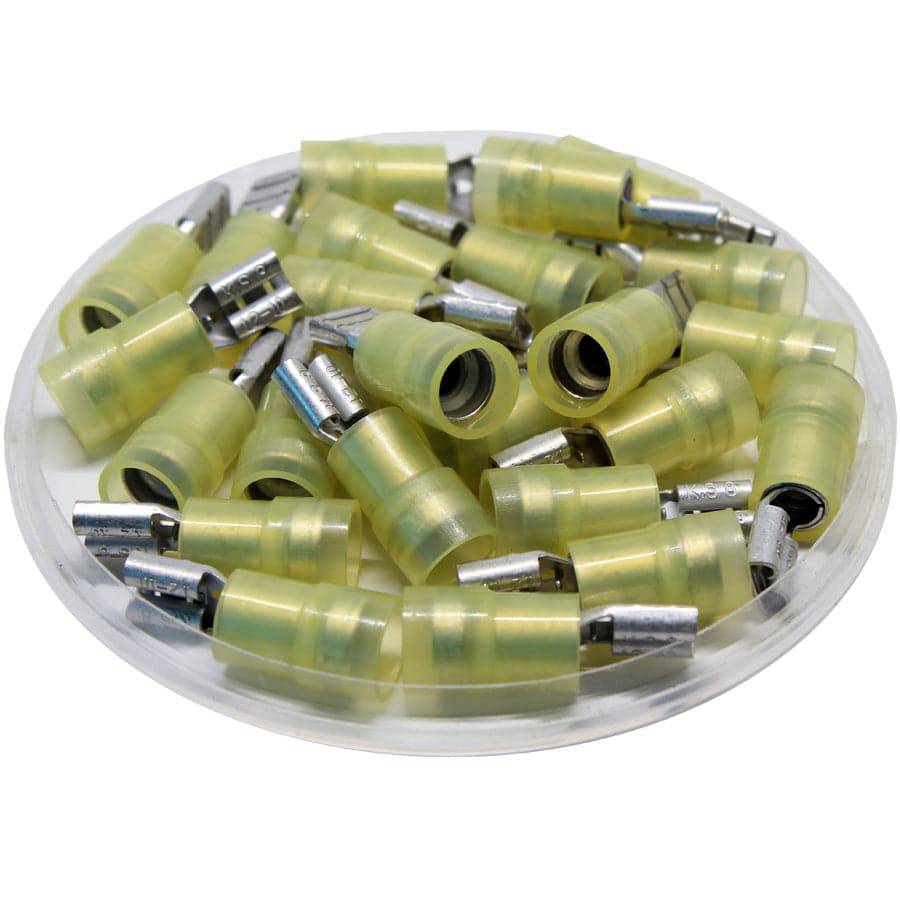

FDNYD5-187(8) - Nylon Insulated Female Quick Disconnects - Double Crimp - 12-10 AWG
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which:
Substantially reduces the strain on the wire strands.
Transfers strain to the wire jacket.
Provides a stronger connection.
Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| Insulation Material: | Nylon |
| Max Electrical Current: | 24 AMP |
| Terminal Material: | Tin-Plated Copper |
| Nema Tab: | 0.8mm x 4.75mm (0.032" x 0.18") |
| Max Electrical Rating: | 75°C - 300 Volts |
| T: | 0.35mm (0.01") |
| L: | 22.0mm (0.87") |
| F: | 6.5mm (0.26") |
| B: | 13.0mm (0.51") |
| W: | 5.0mm (0.20") |
| D: | 6.3mm (0.25") |
| C: | 3.4mm (0.13") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
