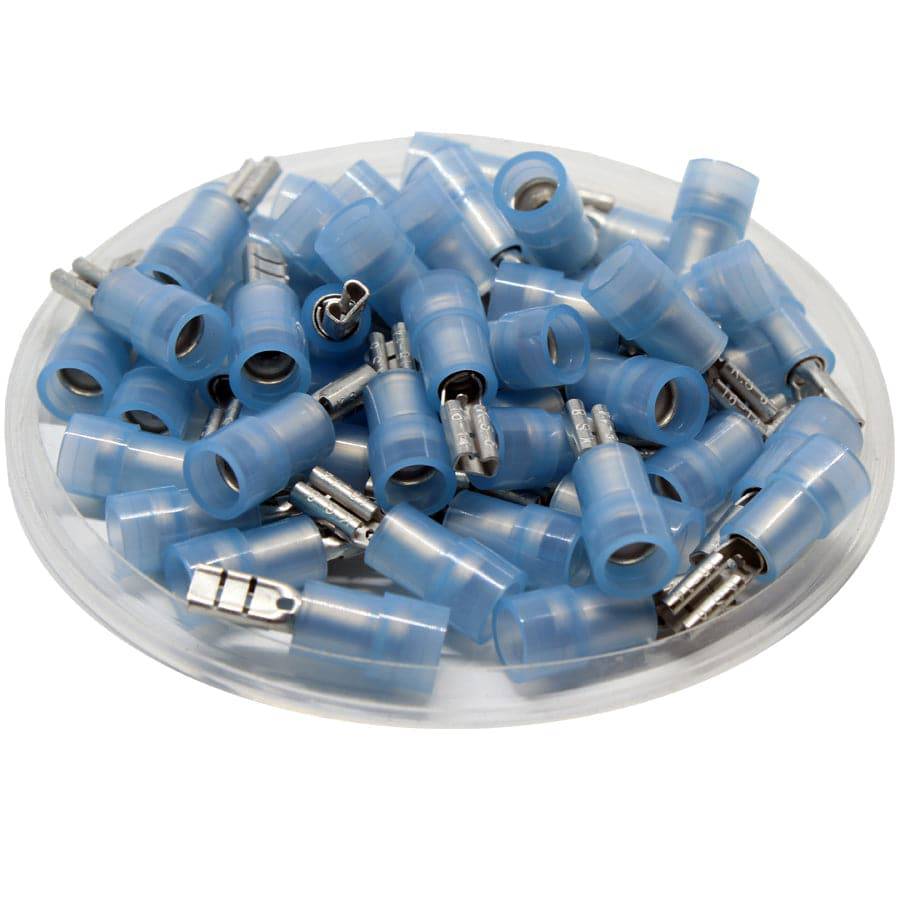

FDNYD2-250 - Nylon Insulated Female Quick Disconnects - Double Crimp - 16-14 AWG

FDNYD2-250 - Nylon Insulated Female Quick Disconnects - Double Crimp - 16-14 AWG

Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which:
  • Substantially reduces the strain on the wire strands.
  • Transfers strain to the wire jacket.
  • Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.


    • Dimensions & Features:

    Wire Range: 16-14 AWG
    T: 0.4mm (0.02")
    L: 21.5mm (0.85")
    F: 7.5mm (0.30")
    B: 11.0mm (0.43")
    W: 6.6mm (0.26")
    D: 4.5mm (0.18")
    C: 2.3mm (0.09")
    Nema Tab: 0.03" X 0.31" (0.8mm X 8.0mm)
    Terminal Material: Tin-Plated Copper
    Insulation Material: Nylon
    Voltage Rating: 600 Volts
    AMP Rating: 15 AMP
    Temp Rating: 75oC
    UL Recognized: Yes
    CE Certified: Yes
    RoHS Compliant: Yes

    Product Drawing:

    Cross References

    Cross Reference Parts:

    None

    Documents

    Click to view the product spec sheet:


    Videos

    Click to view our YouTube channel!
    $3.15

    Original: $10.49

    -70%
    FDNYD2-250 - Nylon Insulated Female Quick Disconnects - Double Crimp - 16-14 AWG—

    $10.49

    $3.15
