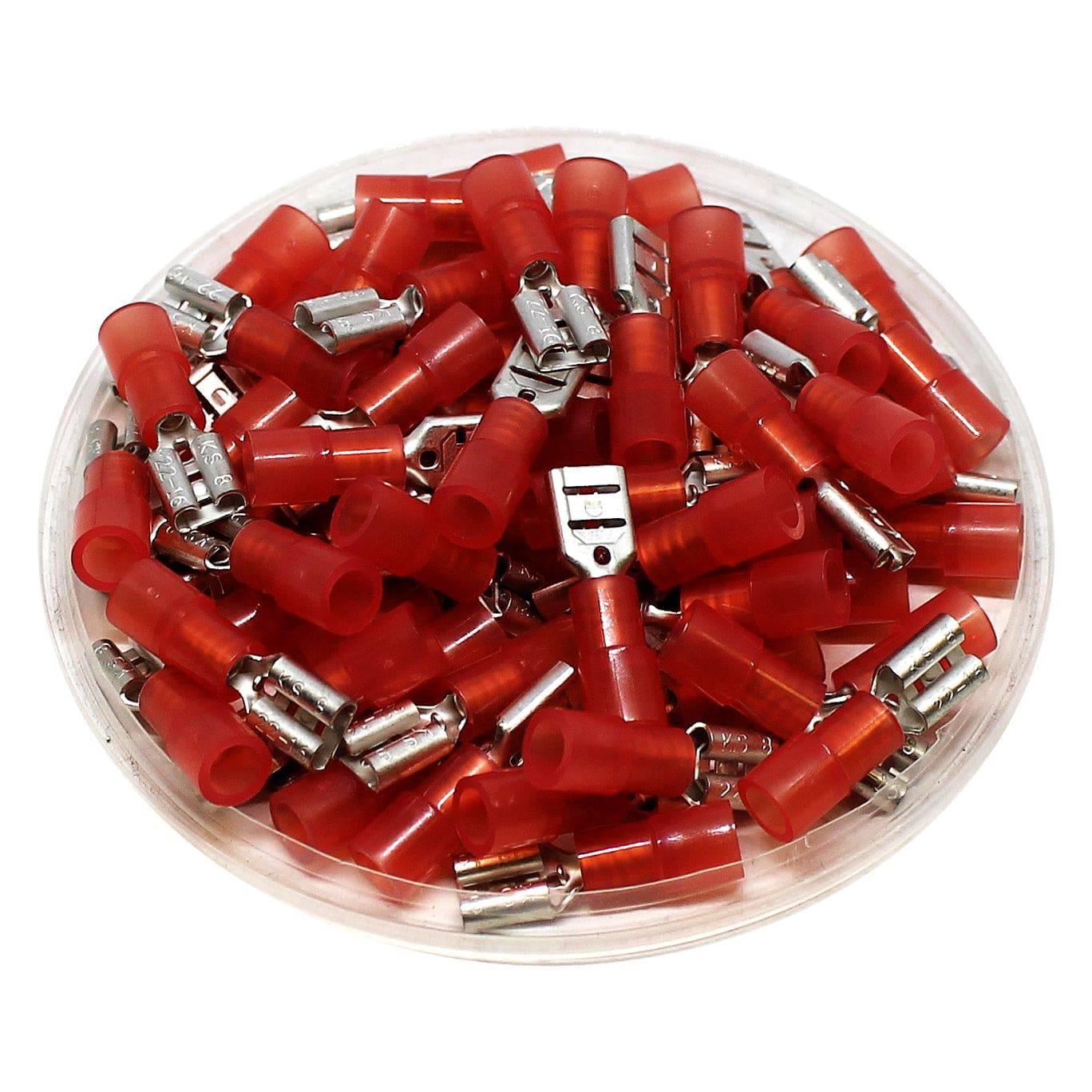

FDNYD1-187(5) - Nylon Insulated Female Quick Disconnect - Double Crimp - 22-16 AWG
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| W: | 5mm (0.20") |
| F: | 6.4mm (0.25") |
| L: | 20mm (0.79") |
| B: | 11mm (0.43") |
| D: | 4mm (0.16") |
| C: | 1.7mm (0.07") |
| Nema Tab: | 0.5 x 4.8mm (0.020 x 0.187") |
| Terminal Material: | Brass (with copper sleeve) |
| Insulation Material: | Nylon |
| Electrical Rating: | 105°C - 600 Volts |
| Amp Rating: | 10AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
