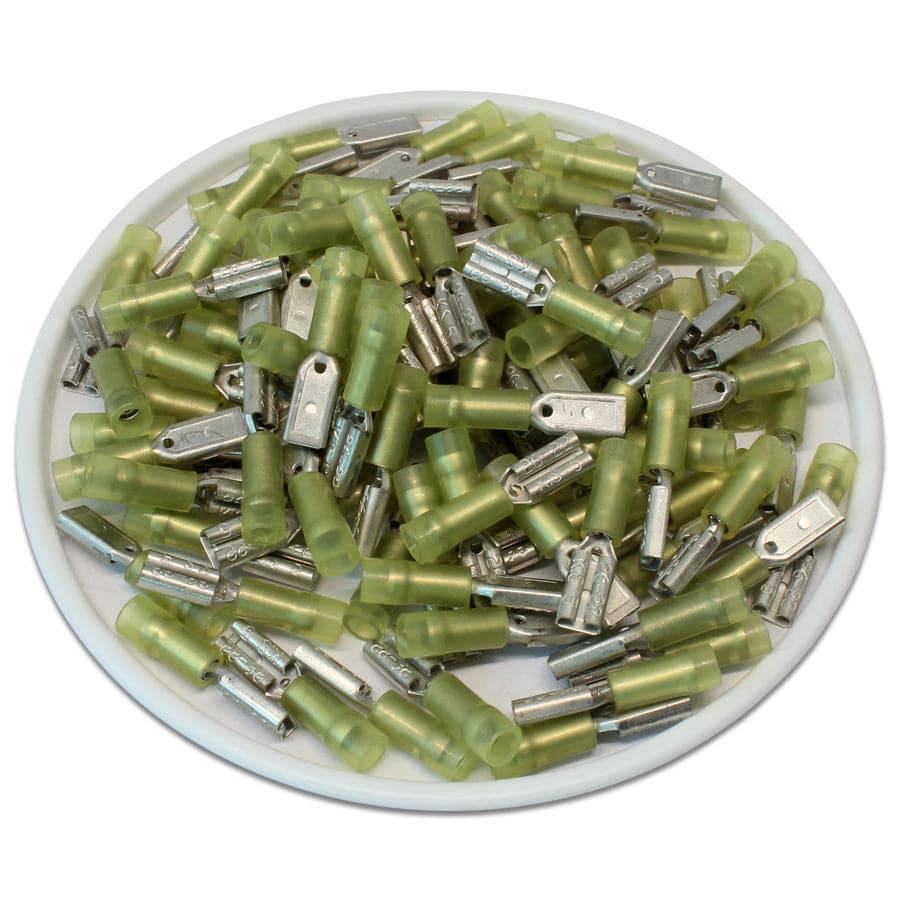

FDNYD05-110(5) - Nylon Insulated Female Quick Disconnect - Double Crimp - 26-22 AWG
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 26-22 AWG |
| Color: | Yellow |
| L: | 16mm (0.63") |
| F: | 6.4mm (0.25") |
| B: | 8.0mm (0.31") |
| W: | 3.3mm (0.13") |
| D: | 3.2mm (0.13") |
| C: | 1.0mm (0.04") |
| Nema Tab: | 0.5 x 2.8mm (0.020 x 0.110") |
| Terminal Material: | Brass (with copper sleeve) |
| Insulation Material: | Nylon |
| Electrical Rating: | 105°C - 600 Volts |
| Amp Rating: | 3AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
