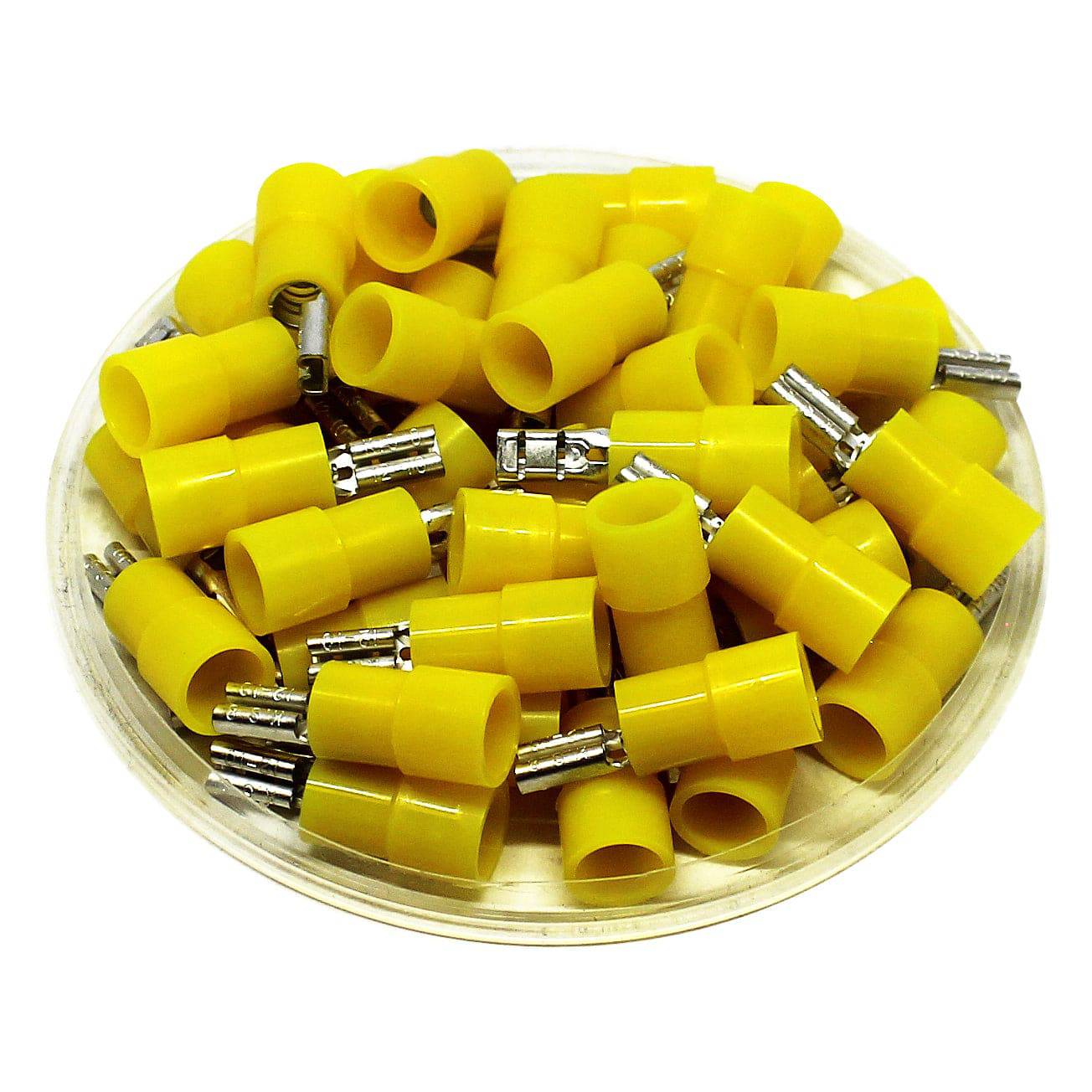

FDNY5-110(5) - 12-10AWG Female Quick Disconnects - Nylon
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Color: | Yellow |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.5 x 2.8mm (0.02 x 0.11") |
| Temperature Rating: | 105°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Current: | 24AMP |
| T: | 0.35mm (0.01") |
| L: | 22mm (0.87") |
| F: | 6.5mm (0.26") |
| B: | 13.0mm (0.51") |
| W: | 3.2mm (0.13") |
| D: | 6.3mm (0.25") |
| C: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$9.42
