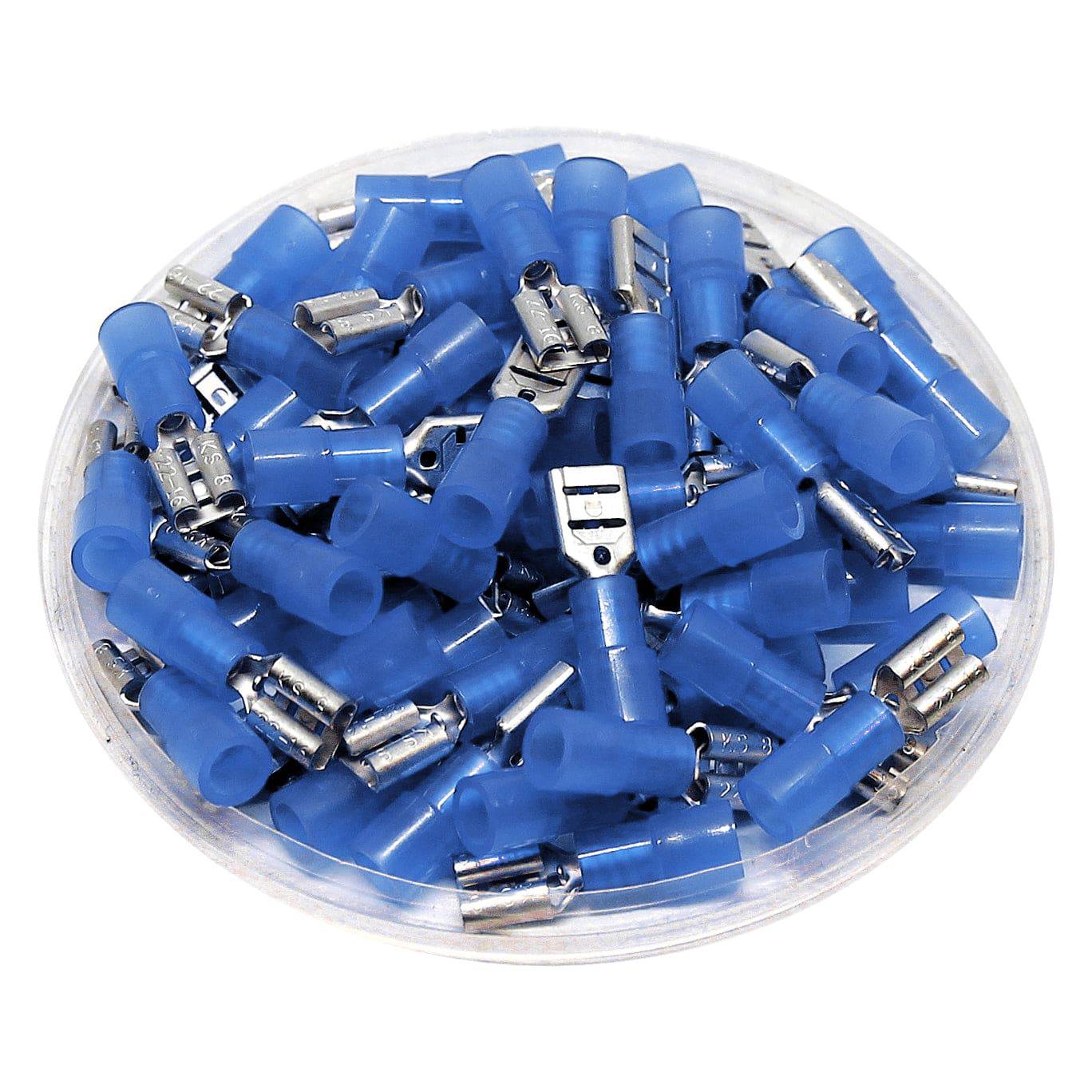

FDNY2-205(8) - 16-14AWG Female Quick Disconnects - Nylon
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.8 x 5.2mm (0.032 x 0.20") |
| Temperature Rating: | 105°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Current: | 15AMP |
| T: | 0.35mm (0.01") |
| L: | 19.5mm (0.77") |
| F: | 5.8mm (0.228") |
| B: | 11.0mm (0.43") |
| W: | 5.7mm (0.22") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.09") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
