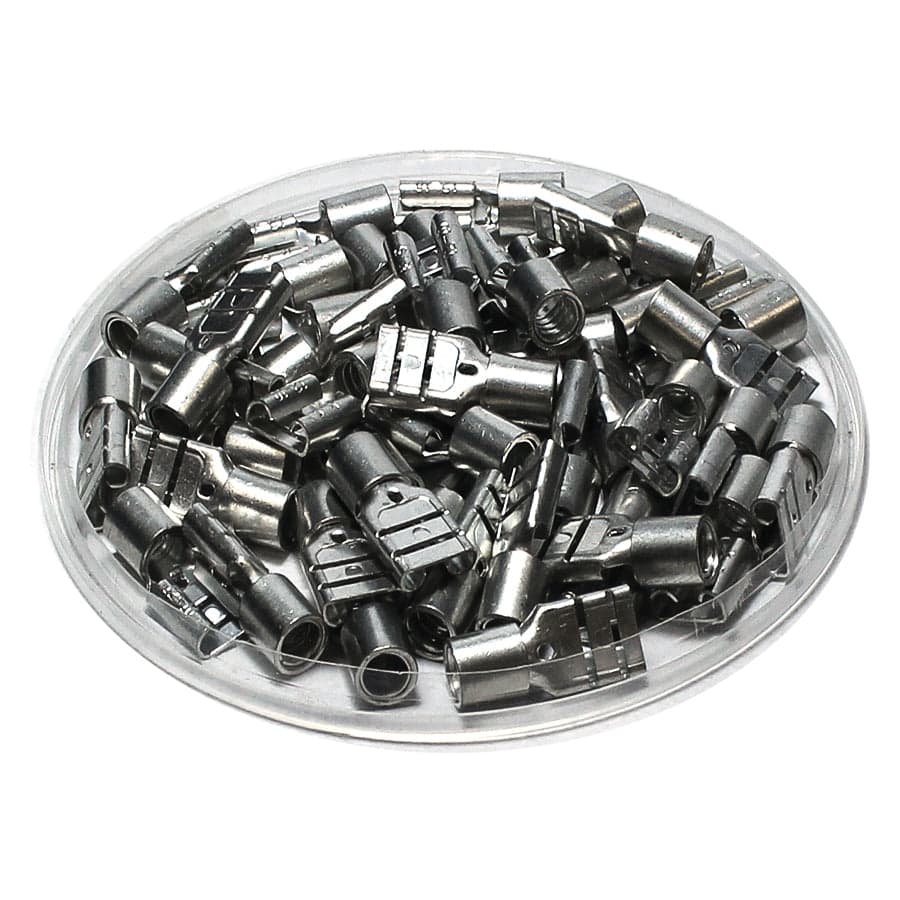

FDNDX5-187(8) - Non Insulated Quick Disconnects - 12-10 AWG - Double Crimp
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools. Double Crimp refers to an additional metal sleeve within the terminal to allow for a tighter hold around the wire, resulting in a more secure crimp.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| L: | 15.2mm (.59") |
| F: | 6.4mm (.25") |
| E: | 6.2mm (.24") |
| W: | 5.0mm (.19") |
| D1: | 3.4mm (.13") |
| D: | 5.6mm (.22") |
| Material: | Tin-Plated Brass |
| Nema Tab: | 0.8mm x 4.75mm (0.032" x 0.187") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 24A |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.73
Original: $12.44
-70%FDNDX5-187(8) - Non Insulated Quick Disconnects - 12-10 AWG - Double Crimp—
$12.44
$3.73Product Information
