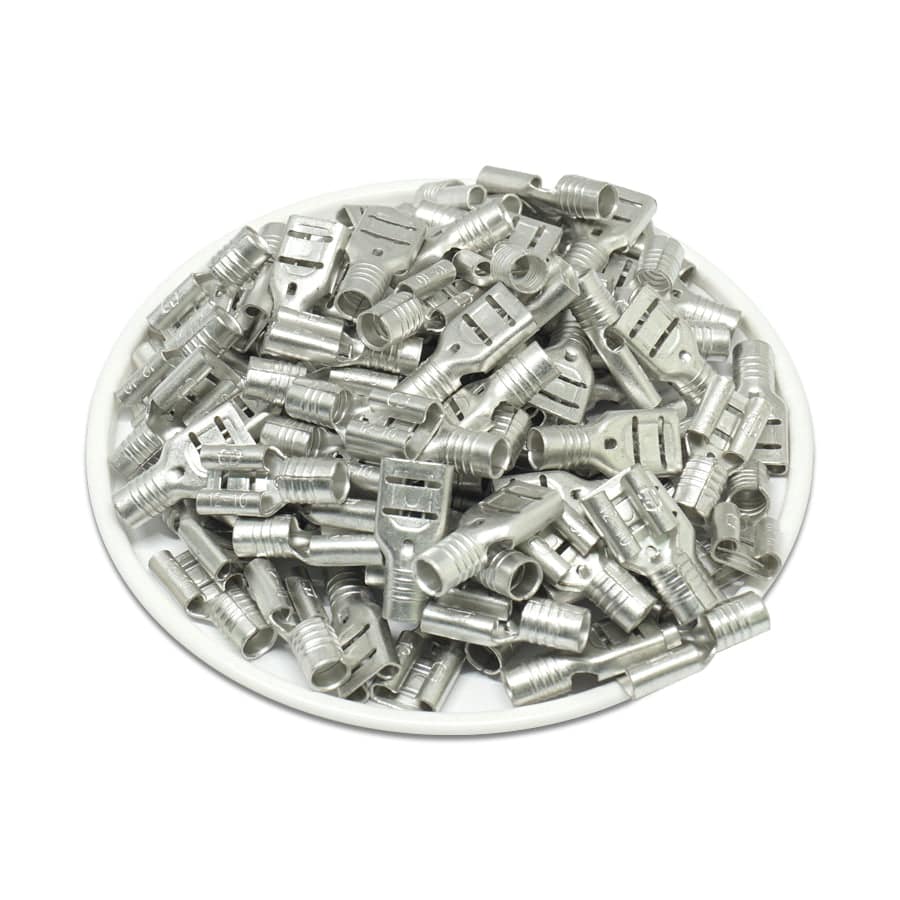

FDN5-250 - 12 to 10 AWG Non Insulated Female Quick Disconnects, NEMA Tab: .250", 100 Pieces
NON INSULATED QUICK DISCONNECTS
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects can be connected or disconnected without damage to the terminal or wire, without the use of tools.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Nema Tab: | 0.8 x 6.35mm (0.03 x 0.25") |
| Max Electrical Current: | 24AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 16.0mm (0.63") |
| F: | 7.4mm (0.29") |
| E: | 6.0mm (0.24") |
| W: | 6.4mm (0.25") |
| D1: | 3.7mm (0.15") |
| D: | 4.8mm (0.18") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
$2.17
Original: $7.25
-70%FDN5-250 - 12 to 10 AWG Non Insulated Female Quick Disconnects, NEMA Tab: .250", 100 Pieces—
$7.25
$2.17Product Information
