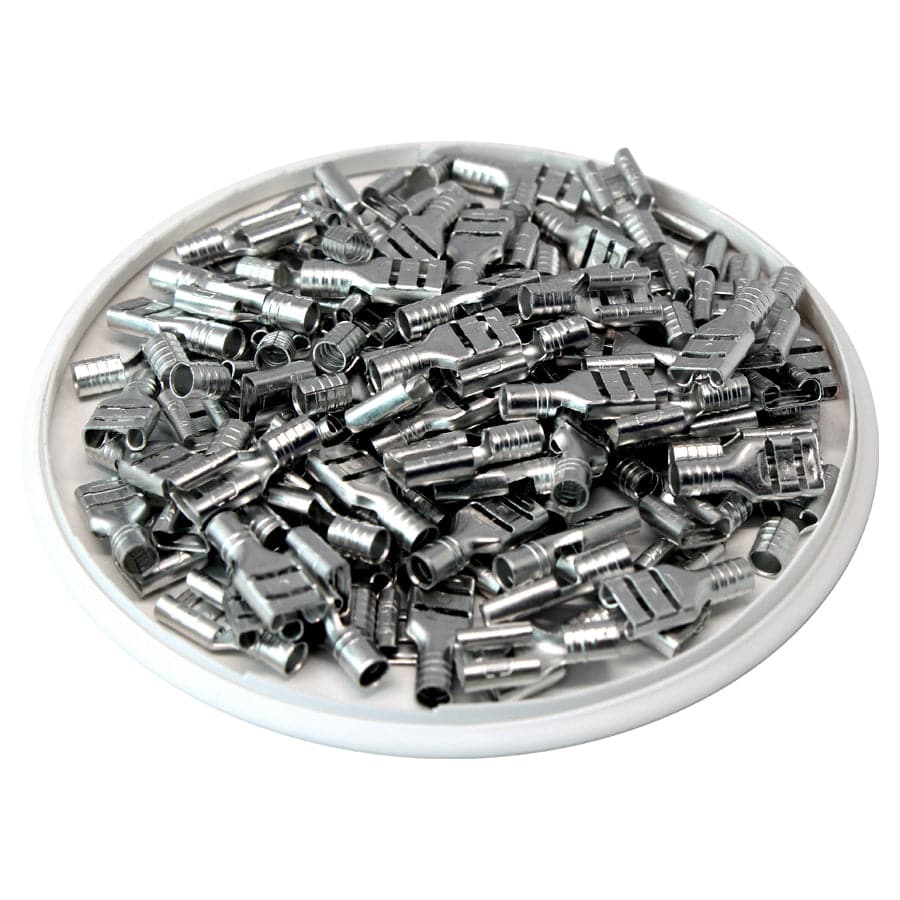

FDN2-187(8) - 16-14AWG Non insulated Female Disconnect - .187(8) - 100/pack
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Nema Tab: | 0.8 x 4.75mm (0.032 x 0.18") |
| Max Eletrical Current: | 15AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 13.4mm (0.53") |
| F: | 6.5mm (0.26") |
| E: | 4.5mm (0.18") |
| W: | 5.1mm (0.20") |
| D1: | 2.7mm (0.11") |
| D: | 3.4mm (0.13") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
