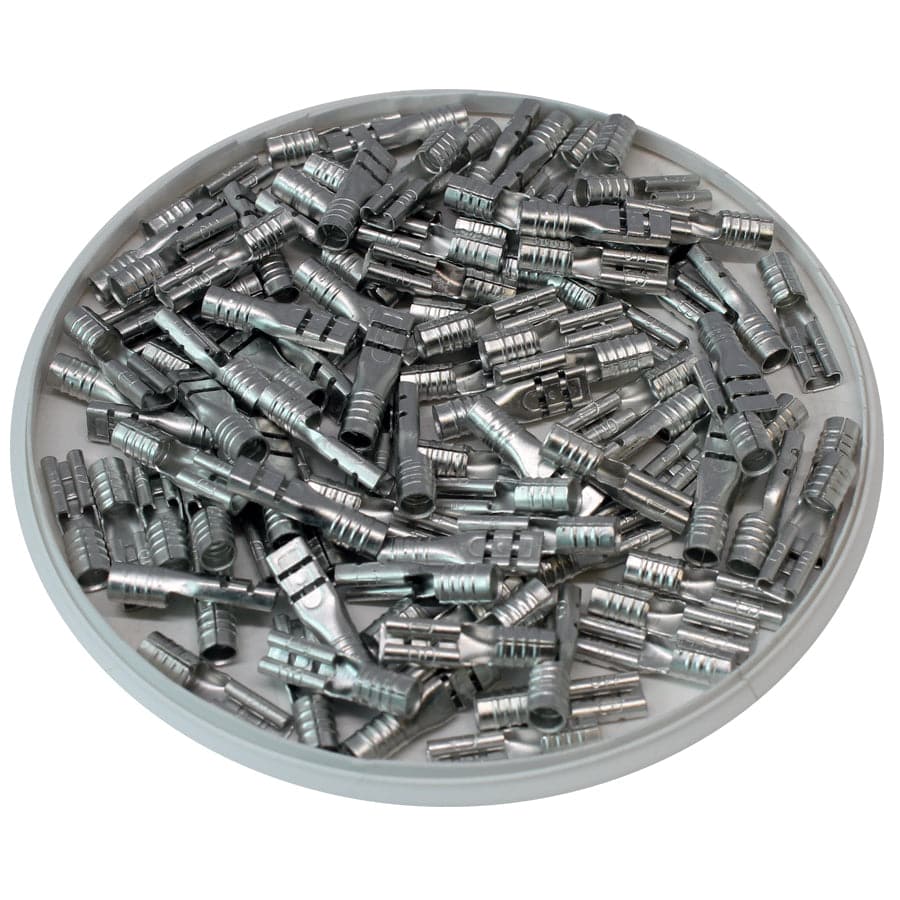

16 to 14 AWG Non Insulated Female Quick Disconnects, NEMA Tab: .110", 100 Pieces - FDN2-110(5)
NON INSULATED QUICK DISCONNECTS
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects can be connected or disconnected without damage to the terminal or wire, without the use of tools.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Nema Tab: | 0.5 x 2.8mm (0.02 x 0.11") |
| Max Electrical Current: | 15AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 14.1mm (0.56") |
| F: | 6.1mm (0.24") |
| E: | 4.9mm (0.19") |
| W: | 3.2mm (0.13") |
| D1: | 2.5mm (0.10") |
| D: | 3.4mm (0.13") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
$1.00
Original: $3.34
-70%16 to 14 AWG Non Insulated Female Quick Disconnects, NEMA Tab: .110", 100 Pieces - FDN2-110(5)—
$3.34
$1.00Product Information
