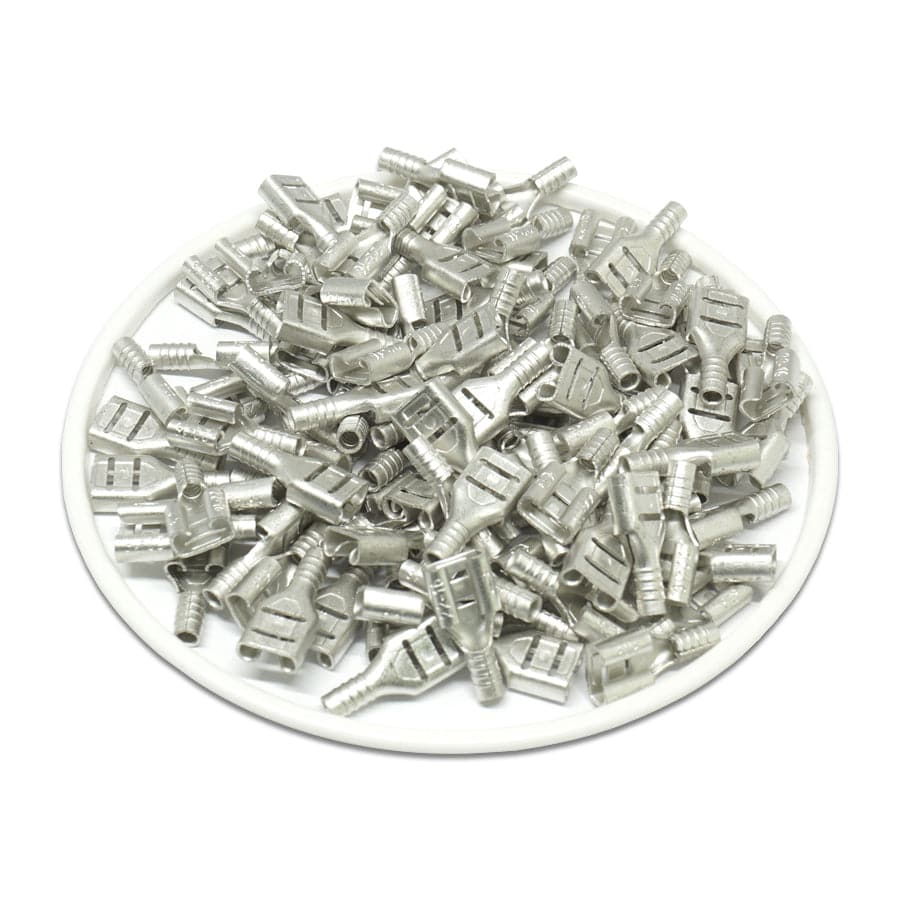

FDN1-205(8) - 22-16AWG Non insulated Female Disconnect - .205(8) - 100/pack
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Nema Tab: | 0.8 x 5.2mm (0.03 x 0.20") |
| Max Eletrical Current: | 10AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 13.9mm (0.55") |
| F: | 5.6mm (0.22") |
| E: | 5.0mm (1.8") |
| W: | 5.5mm (0.22") |
| D1: | 1.8mm (0.07") |
| D: | 2.8mm (0.11") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.44
Original: $4.81
-70%FDN1-205(8) - 22-16AWG Non insulated Female Disconnect - .205(8) - 100/pack—
$4.81
$1.44Product Information
