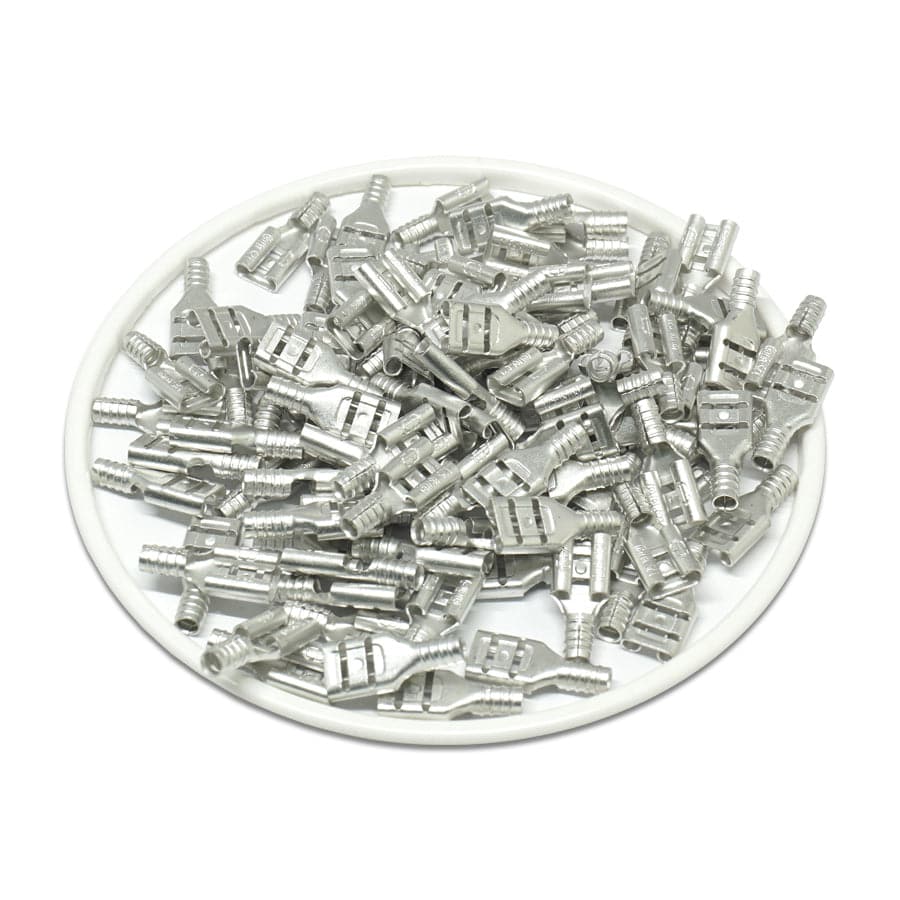

FDN1-187(8) - 22-16AWG Non insulated Female Disconnect - .187(8) - 100/pack
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| L: | 13.5mm (.53") |
| F: | 6.4mm (.25") |
| E: | 4.5mm (.18") |
| W: | 5.2mm (.20") |
| D1: | 2.1mm (.08") |
| D: | 2.8mm (.11") |
| Nema Tab: | 0.8mm x 4.75mm (0.032" x 0.187") |
| Material: | Tin Plated Brass |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Current: | 10A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.37
Original: $4.58
-70%FDN1-187(8) - 22-16AWG Non insulated Female Disconnect - .187(8) - 100/pack—
$4.58
$1.37Product Information
