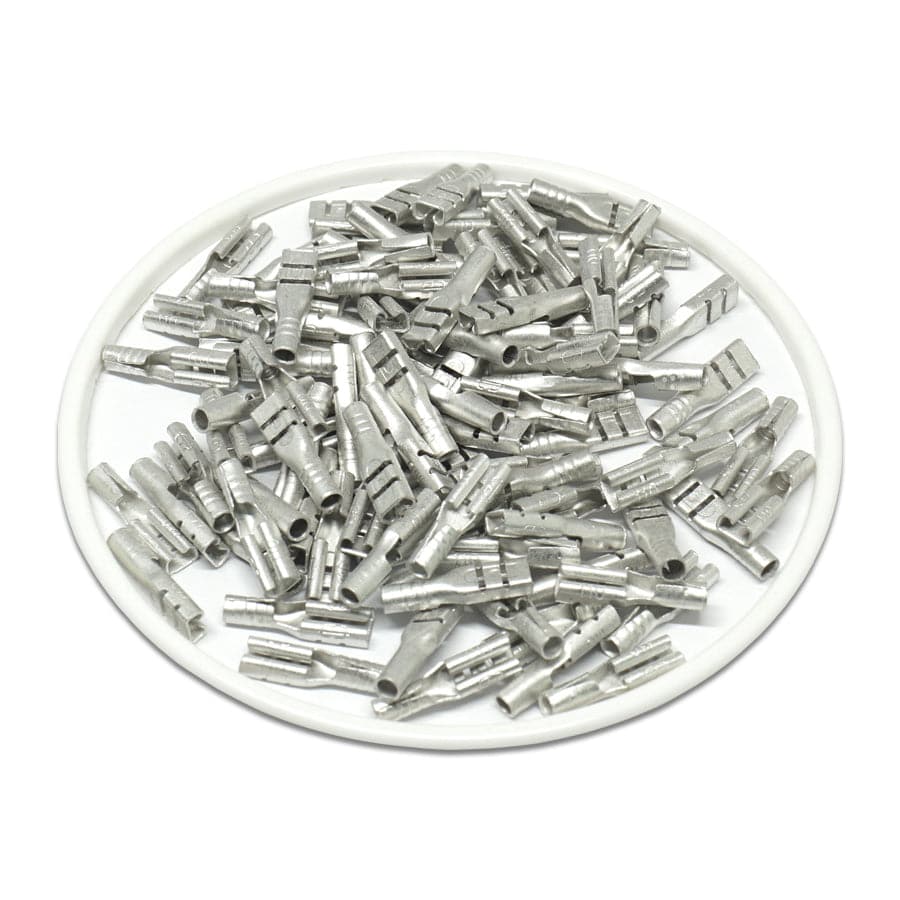

FDN1-110(8) - 22-16AWG Non insulated Female Disconnect - .110(8) - 100/pack
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects be connected or disconnected without damage to the terminal or wire. without the use of tools.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Nema Tab: | 0.8 x 2.8mm (0.03 x 0.11") |
| Max Eletrical Current: | 10AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 14.2mm (0.56") |
| F: | 6.2mm (0.25") |
| E: | 4.9mm (0.19") |
| W: | 3.2mm (0.13") |
| D1: | 1.7mm (0.07") |
| D: | 2.7mm (0.11") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$3.66
FDN1-110(8) - 22-16AWG Non insulated Female Disconnect - .110(8) - 100/pack—
$3.66
