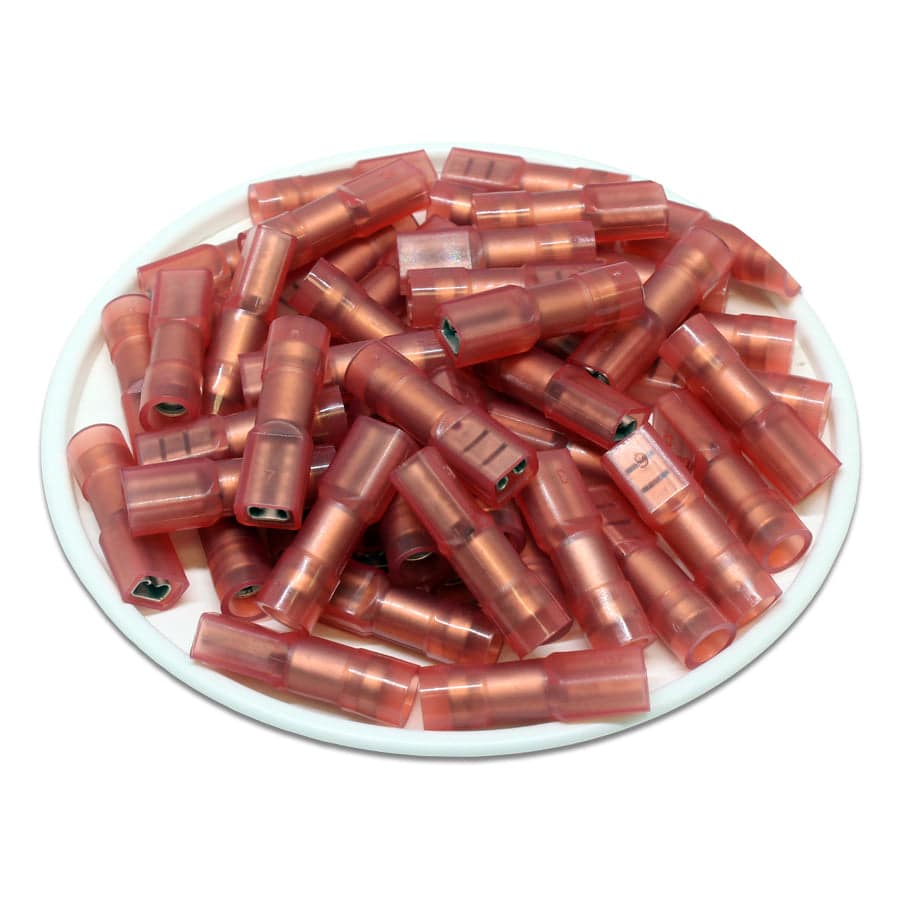

FDFNYD1-110(8) - Nylon Fully Insulated Double Crimp Quick Disconnects - 22-16 AWG - Female
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp copper sleeve provides maximum electrical conductivity, strengthens barrel, and protects wire against stress and high vibration.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| W: | 3.2mm (0.13") |
| F: | 6.5mm (0.26") |
| L: | 19.5mm (0.77") |
| B: | 11mm (0.43") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| Nema Tab: | 0.8 x 2.8mm (0.032 x 0.110") |
| Terminal Material: | Brass (with copper sleeve) |
| Insulation Material: | Nylon |
| Electrical Rating: | 105°C - 600 Volts |
| Amp Rating: | 10AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
