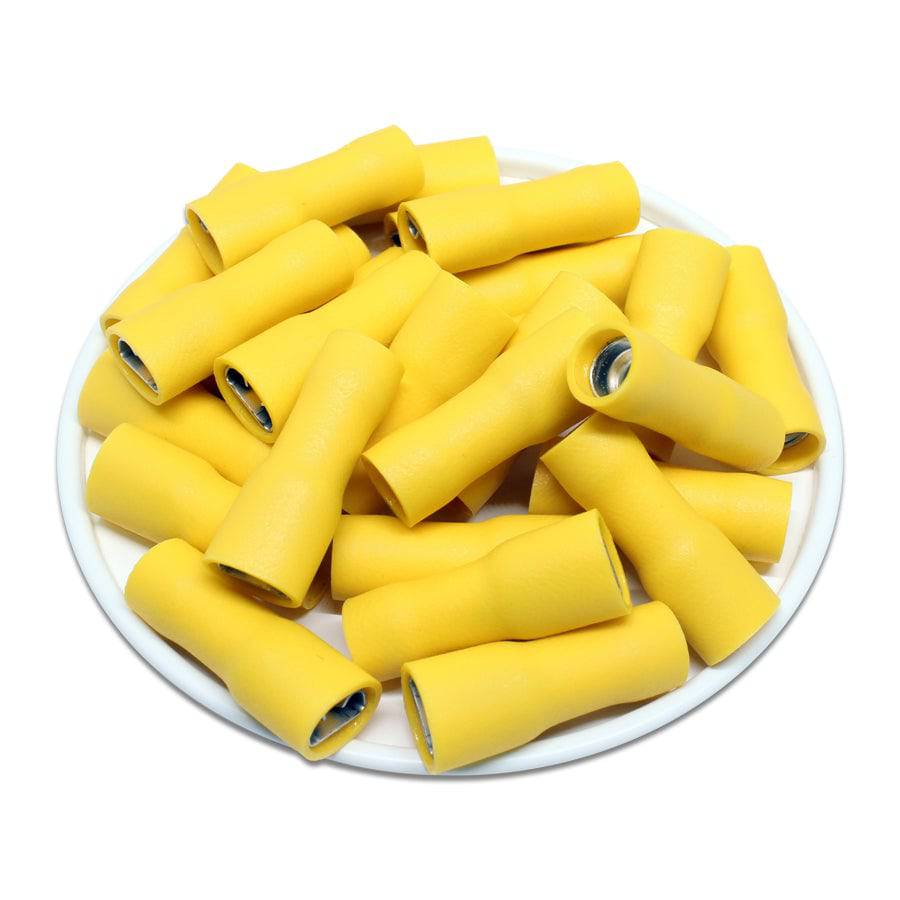

FDFD5-250 - 12 to 10 AWG Vinyl PVC Insulated Quick Disconnects, Female, Fully Insulated, Double Crimp, Yellow, 50 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Yellow |
| L: | 24.2mm (0.95") |
| F: | 7.5mm (0.30") |
| W: | 6.6mm (0.26") |
| T: | 0.4mm (0.02") |
| B: | 12.5mm (0.49") |
| D: | 6.2mm (0.24") |
| C: | 3.4mm (0.13") |
| Material: | Brass |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 24A |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!$3.07
Original: $10.22
-70%FDFD5-250 - 12 to 10 AWG Vinyl PVC Insulated Quick Disconnects, Female, Fully Insulated, Double Crimp, Yellow, 50 Pieces—
$10.22
$3.07Product Information
