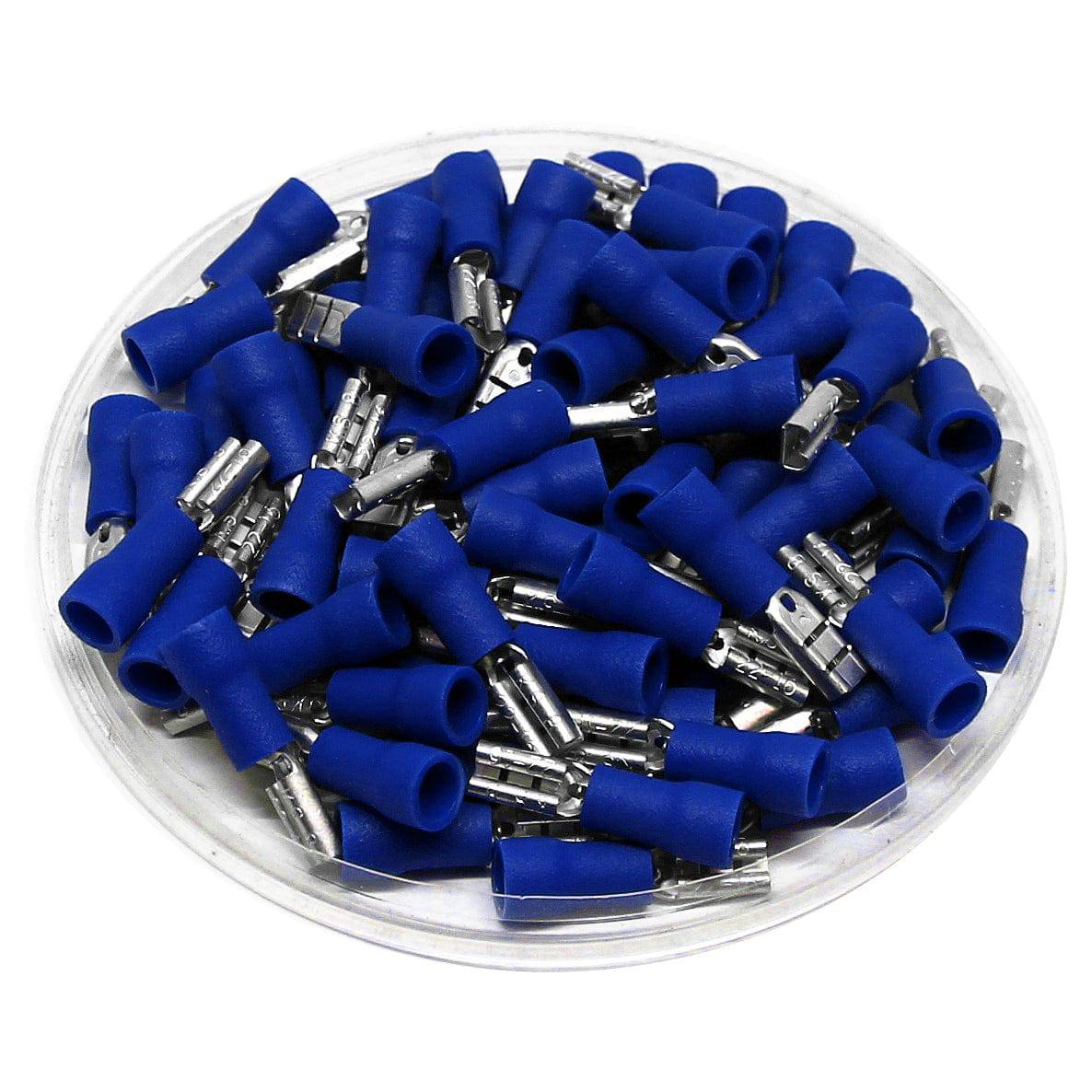

FDD2-110(5) - FEMALE - 16-14AWG Double Crimp Quick Disconnects - Vinyl
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Insulation Material: | Vinyl |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.5mm x 2.8mm (0.02" x 0.11") |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| T: | 0.3mm (0.012") |
| L: | 19.0mm (0.74") |
| F: | 6.5mm (0.25") |
| F1: | 10.5mm (0.41") |
| W: | 3.2mm (0.32") |
| D: | 4.7mm (0.18") |
| B: | 2.3mm (0.09") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$8.60
FDD2-110(5) - FEMALE - 16-14AWG Double Crimp Quick Disconnects - Vinyl—
$8.60
