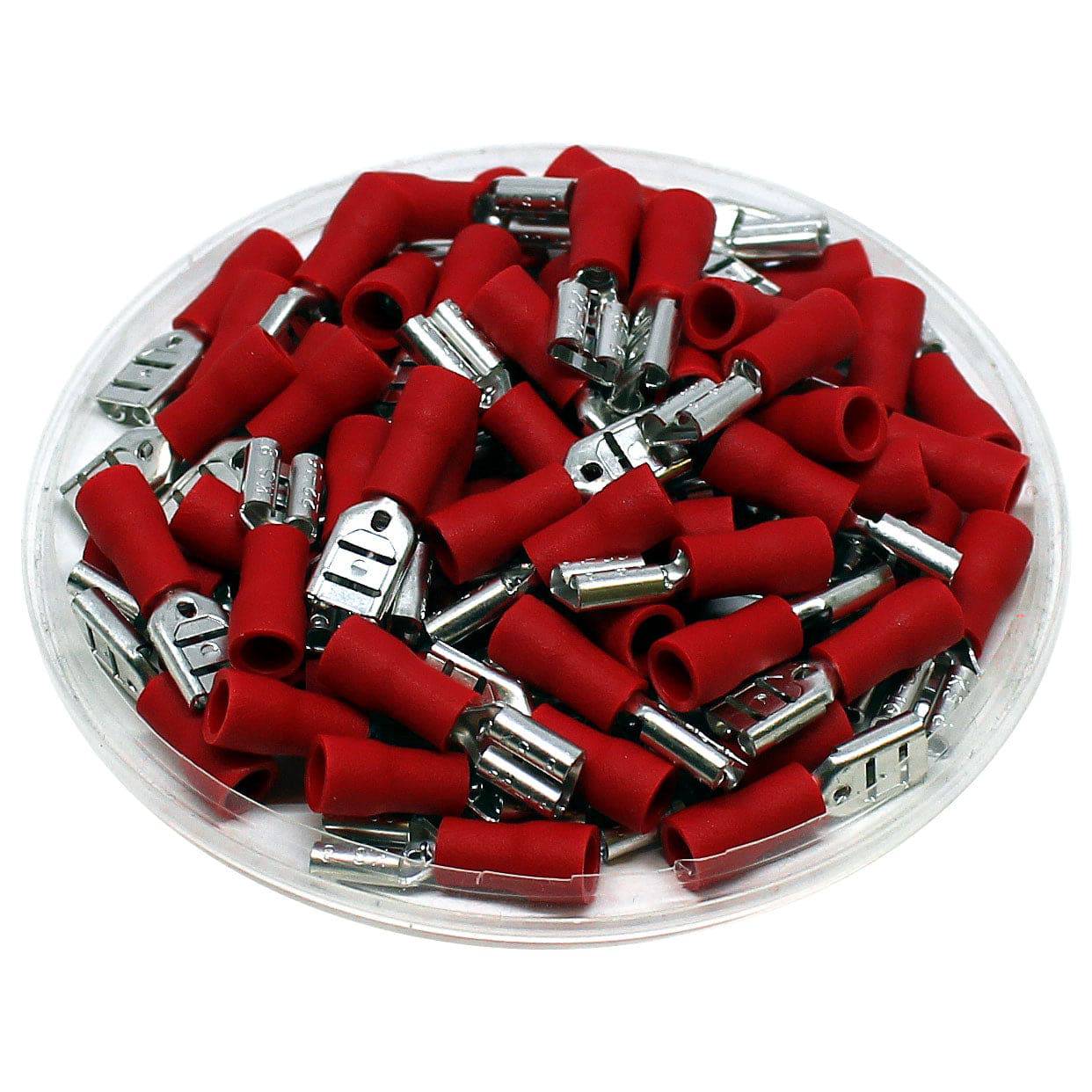

FDD1-250 - 22 to 16 AWG Vinyl PVC Insulated Quick Disconnects, Female, Red, Fully Insulated, Double Crimp, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| L: | 20.8mm (0.82") |
| F: | 7.5mm (0.30") |
| B: | 10.5mm (0.41") |
| W: | 6.6mm (0.26") |
| D: | 4.0mm (0.16") |
| C: | 1.7mm (0.07") |
| Nema Tab: | 0.8 x 6.4mm (0.032 x 0.250") |
| Material: | Tin Plated Brass |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 10A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
