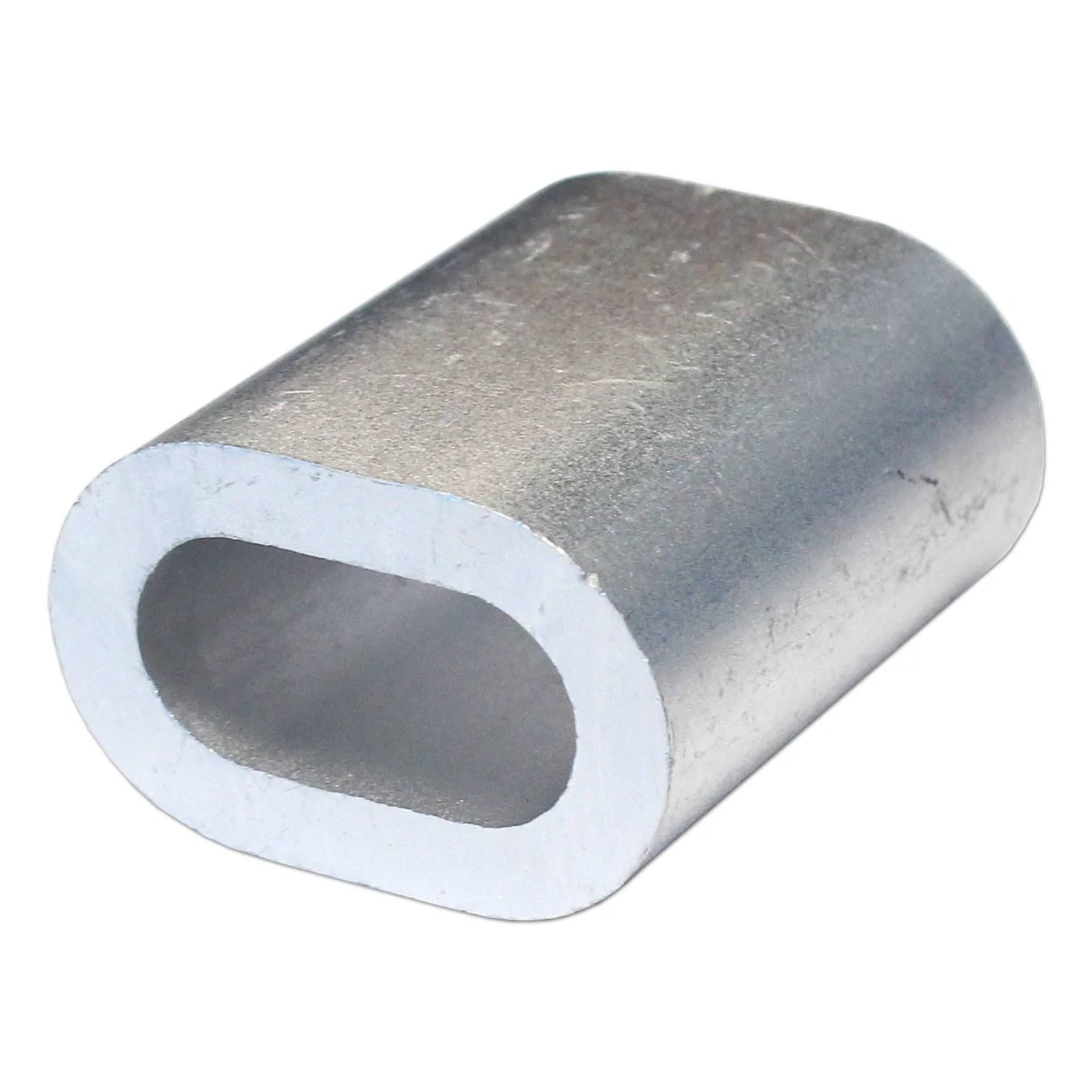

FD710825 - 3/32" Wire Rope Swage Sleeves, Oval Shape, Aluminum, 25 Pieces
ALUMINUM SWAGE SLEEVES: OVAL SHAPE
Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 3/32" |
| A: | 0.35" (9.09mm) |
| B: | 0.19" (4.89mm) |
| C: | 0.30" (7.65mm) |
| Terminal Material: | Aluminum |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Original: $1.60
-70%$1.60
$0.48Product Information
