5/32" Wire Rope Swage Sleeves, Oval Shape, Copper, 10 Pieces - FD710604

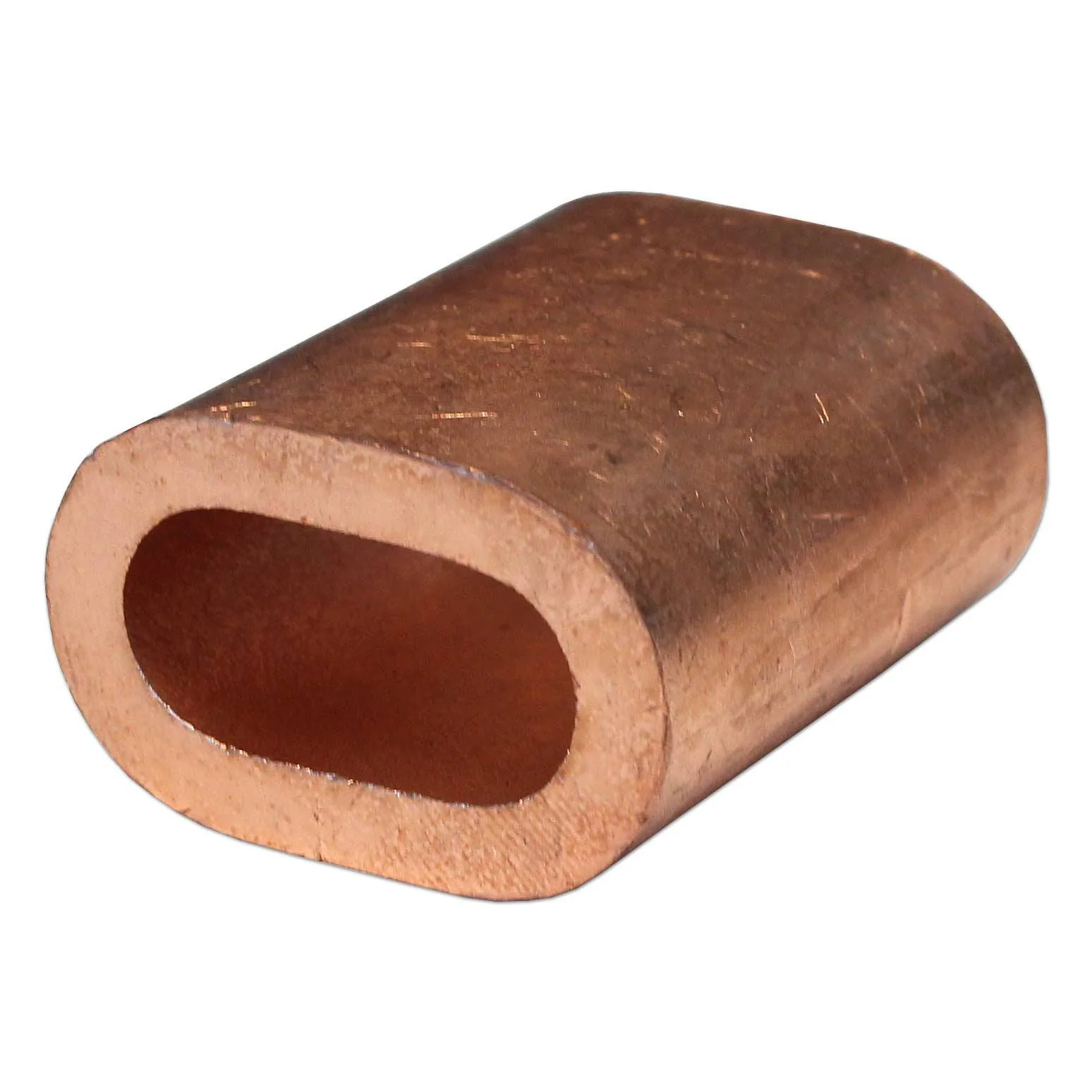

COPPER SWAGE SLEEVES: OVAL SHAPE

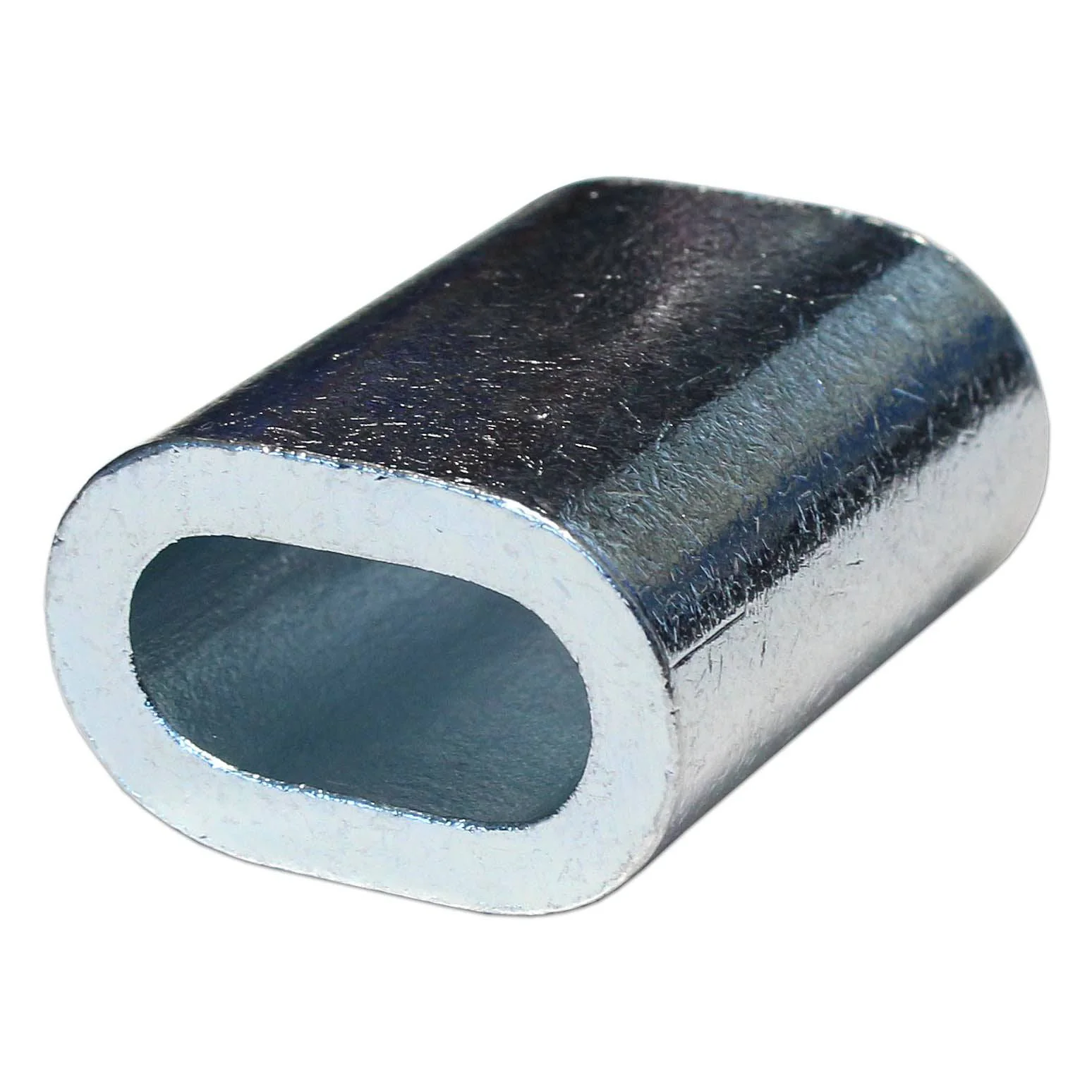

Swage Sleeves, also known as compression sleeves are used to enclose the ends of a wire/cable for various rigging needs. The sleeve is capable of being placed anywhere on the cable but is predominantly used at the ends. Available in copper, zinc-plated copper, and aluminum.
DIMENSIONS & FEATURES:
| Wire Range: | 5/32" |
| A: | 0.54" (13.8mm) |
| B: | 0.31" (7.79mm) |
| C: | 0.48" (12.2mm) |
| Terminal Material: | Copper |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Original: $6.04
-70%$6.04
$1.81Product Information
