FD1004N-22 - 10 to 4 AWG Wire Ferrules Crimping Tool, Wide Crimp, Trapezoidal Crimp - 1 Piece

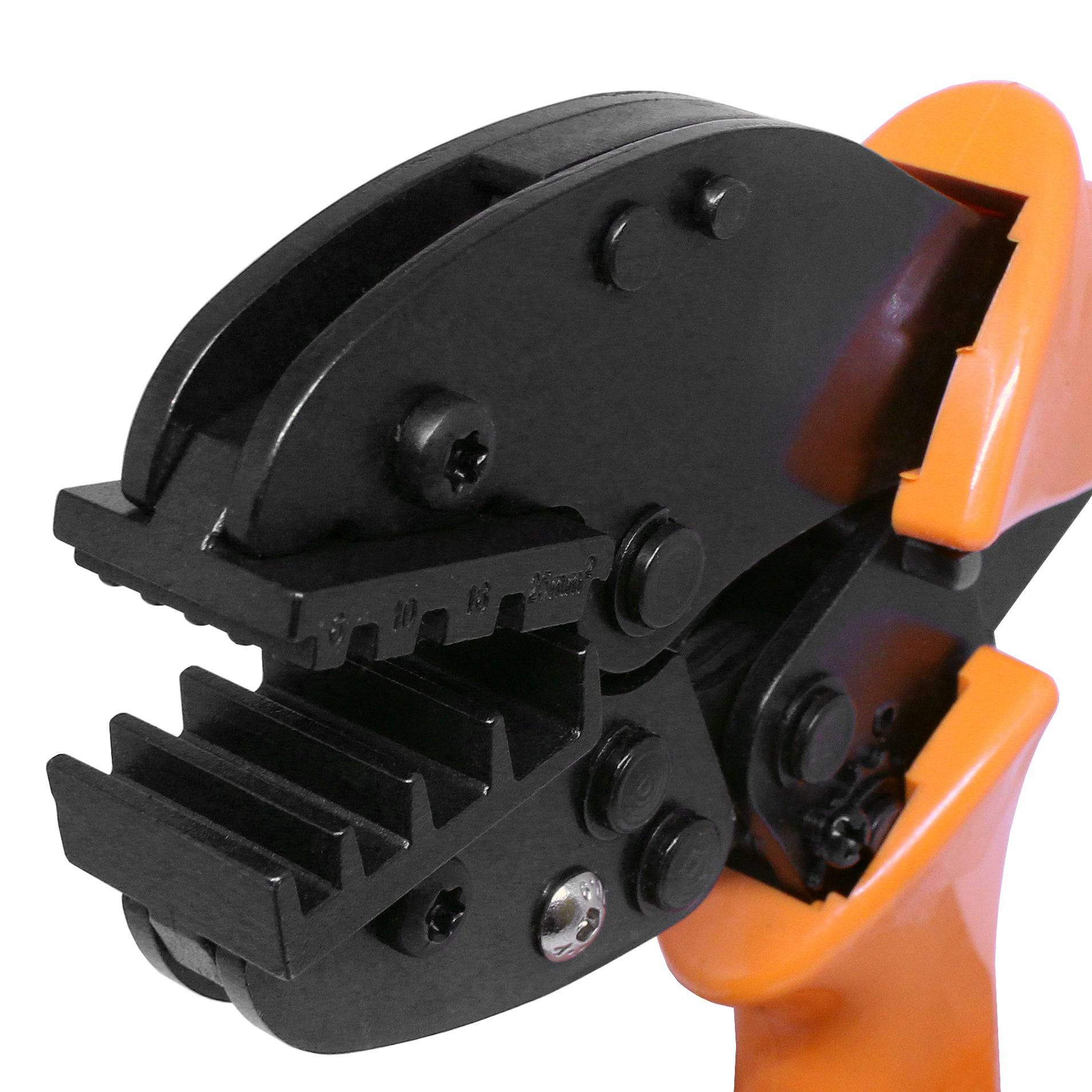

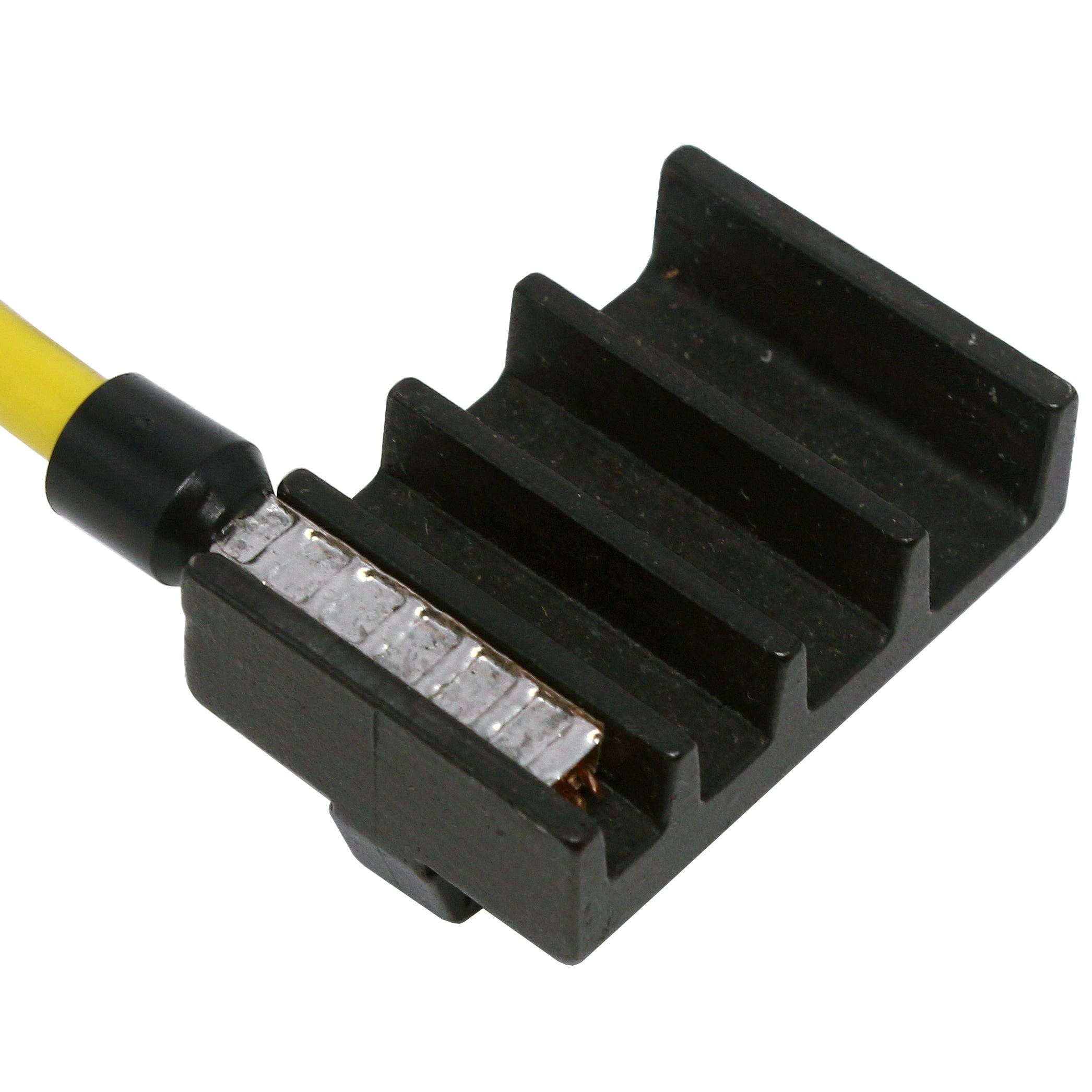

This heavy duty wire ferrule crimping tool was specifically designed to crimp longer length ferrules in the following AWG sizes: 10, 8, 6, and 4. The installed die set is almost twice as wide as traditional die sets so it can crimp the entire 20mm ferrule length in one stroke. Versus standard tools that have to be crimped once and then realigned and crimped again to terminate the entire length of a longer ferrule.
Dimensions & Features:
None:
Dimensions & Features:
| Crimping Range: | 14 to 4AWG (2.50 to 25.00mm2) |
| Insulated/Uninsulated Ferrules: | 10 to 4AWG (6.00 to 25.00mm2) |
| Twin Ferrules: | 2x14 to 2x8AWG (2x2.50 to 2x10.00mm2) |
| Crimping Profile: | Trapezoidal |
| Crimp Width: | 22mm (Suitable for longer non-standard length ferrules) |
| Crimping Mechanism: | Ratchet |
| Tool Material: | Hardened Steel Frame |
| Handle Material: | High Impact Plastic |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:Videos
Click here to visit our YouTube channel!$20.70
