DRVB10-1 DIN46237 Vinyl Ring Terminal Brazed 22-16 AWG - 3/8" Stud

DRVB10-1 DIN46237 Vinyl Ring Terminal Brazed 22-16 AWG - 3/8" Stud

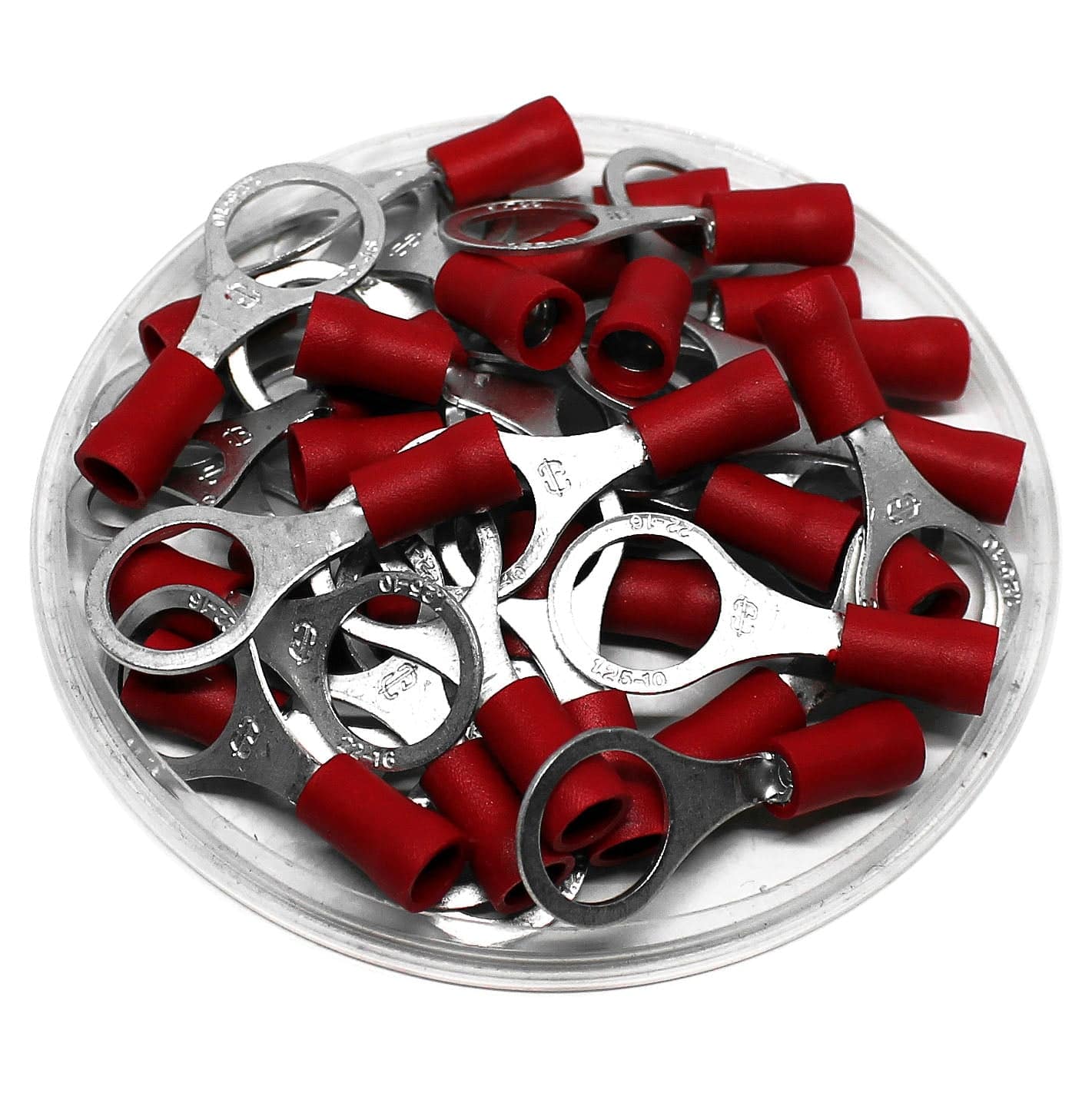

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing protection to the crimp joint. Color coded according to industry standards.

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: 3/8" Stud
Color: Red
T: 0.8mm (.03")
L: 22mm (0.87")
F: 12mm (0.472")
E: 10mm (0.39")
W: 14mm (0.55")
D 4.0mm (0.157")
D1: 1.7mm (0.067")
D2: 10.5mm (0.413")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
