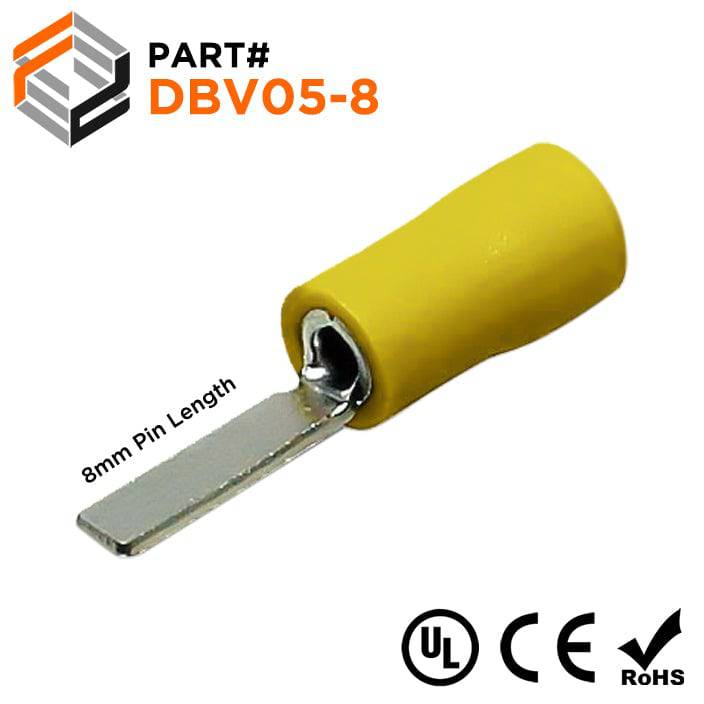

26 to 22 AWG Vinyl Insulated Flat Blade Terminals, Butted Seam, UL Approved, 100 Pieces - DBV05-8

26 to 22 AWG Vinyl Insulated Flat Blade Terminals, Butted Seam, UL Approved, 100 Pieces - DBV05-8

VINYL INSULATED FLAT BLADE TERMINALS

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:

  • Timers
  • Motors
  • Valves
  • Relays
  • Mechanical Switches
  • Wire to Wire Harnesses



Dimensions & Features:

Wire Range: 26-22 AWG
Terminal Material: Tin-Plated Copper
Insulation: Vinyl
Color: Yellow
Type: Butted Seam
Max Electrical Rating: 105°C
Max Electrical Voltage: 600 Volts
T: 0.5mm (0.02")
L: 16.0mm (0.63")
F: 8.0mm (0.32")
E: 8.0mm (0.32")
W: 1.5mm (0.60")
D: 2.2mm (0.09")
D1: 1.0mm (0.04")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes


Product Drawing:



Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
