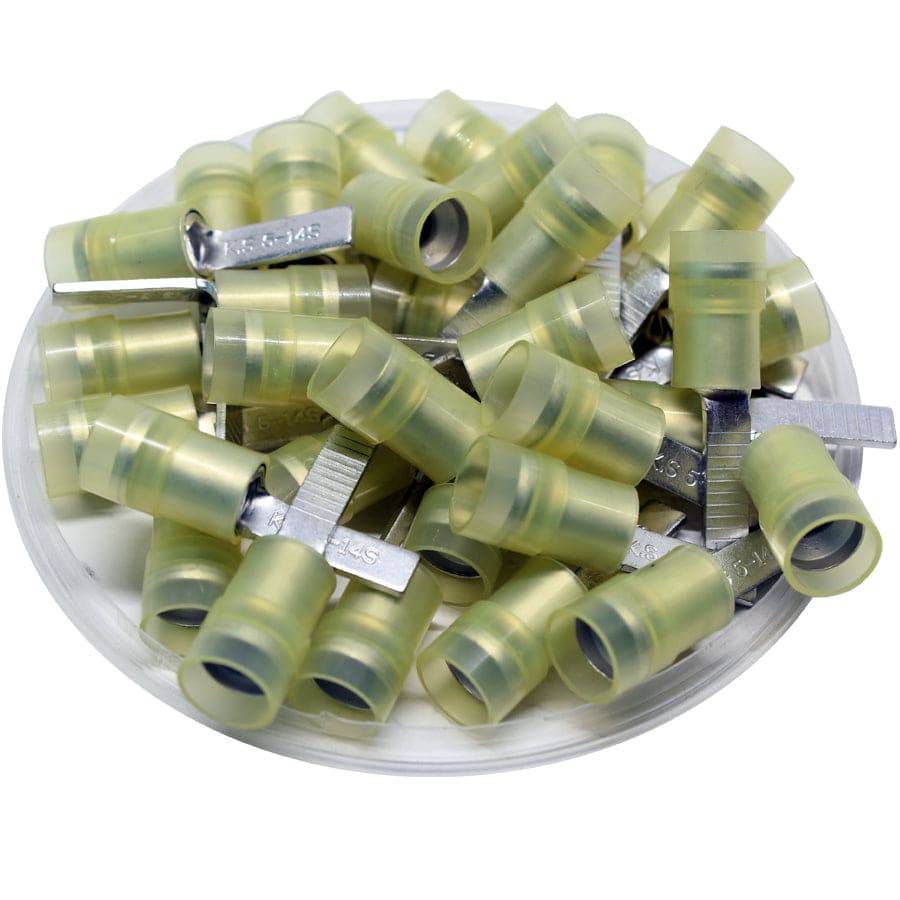

DBNYDS5-14 - Nylon Insulated Flat Blade Terminal - Double Crimp - 12-10 AWG - Yellow
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 12-10AWG |
| Insulation: | Nylon |
| Color: | Yellow |
| Seam: | Butted |
| Maximum Rating: | 600 Volts - 105oC |
| T: | 1.0mm (0.04") |
| L: | 27.0mm (1.10") |
| F: | 14.0mm (0.55") |
| E: | 13.0mm (0.51") |
| W: | 4.0mm (0.16") |
| D: | 7.0mm (0.28") |
| D1: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
