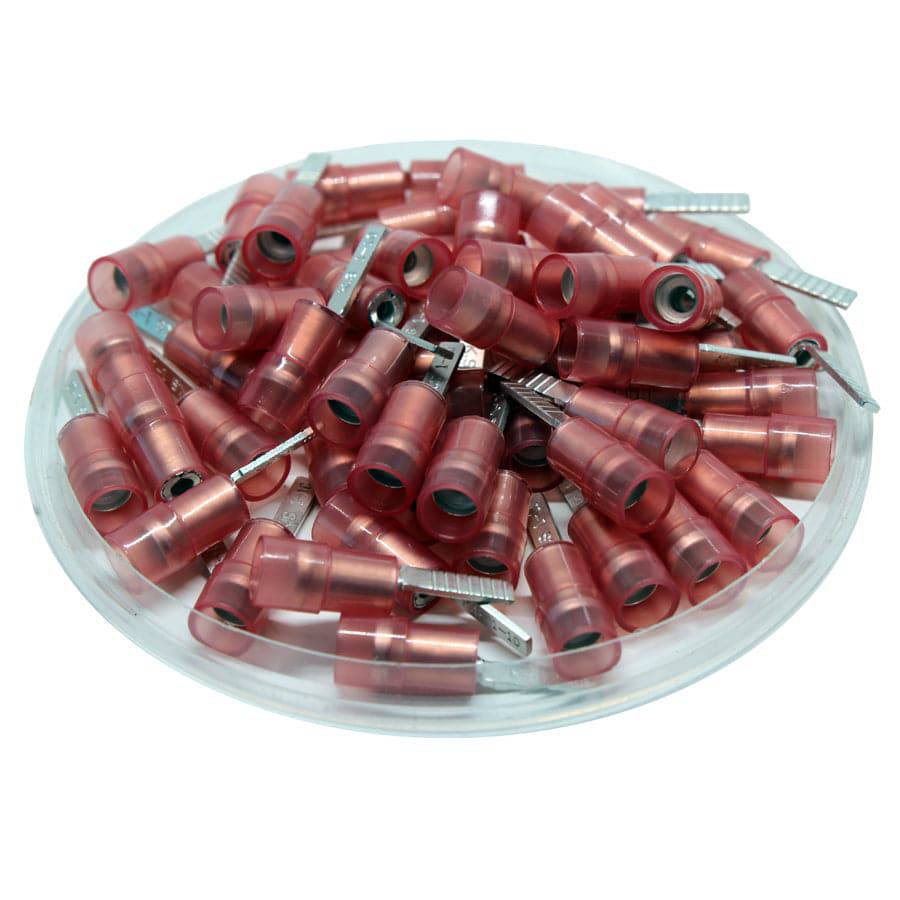

DBNYD1-10 - Nylon Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red

DBNYD1-10 - Nylon Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 22-16AWG
Terminal Material: Tin-Plated Copper
Insualtion Material: Nylon
Color: Red
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 18AMP
T: 0.75mm (0.03")
L: 20.8mm (0.82")
F: 10.0mm (0.39")
E: 11.0mm (0.43")
W: 2.3mm (0.09")
D: 4.0mm (0.16")
D1: 1.7mm (0.07")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

$2.95

Original: $9.82

-70%
DBNYD1-10 - Nylon Insulated Flat Blade Terminal - Double Crimp - 22-16 AWG - Red—

$9.82

$2.95

Product Information

Shipping & Returns

Description

A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as timers, motors, valves, relays, mechanical switches and wire to wire harnesses.

Dimensions & Features:

Wire Range: 22-16AWG
Terminal Material: Tin-Plated Copper
Insualtion Material: Nylon
Color: Red
Maximum Rating: 600 Volts - 105oC
Max Electrical Rating: 18AMP
T: 0.75mm (0.03")
L: 20.8mm (0.82")
F: 10.0mm (0.39")
E: 11.0mm (0.43")
W: 2.3mm (0.09")
D: 4.0mm (0.16")
D1: 1.7mm (0.07")
UL Recognized: Yes
RoHS Compliant: Yes
CE Certified: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
