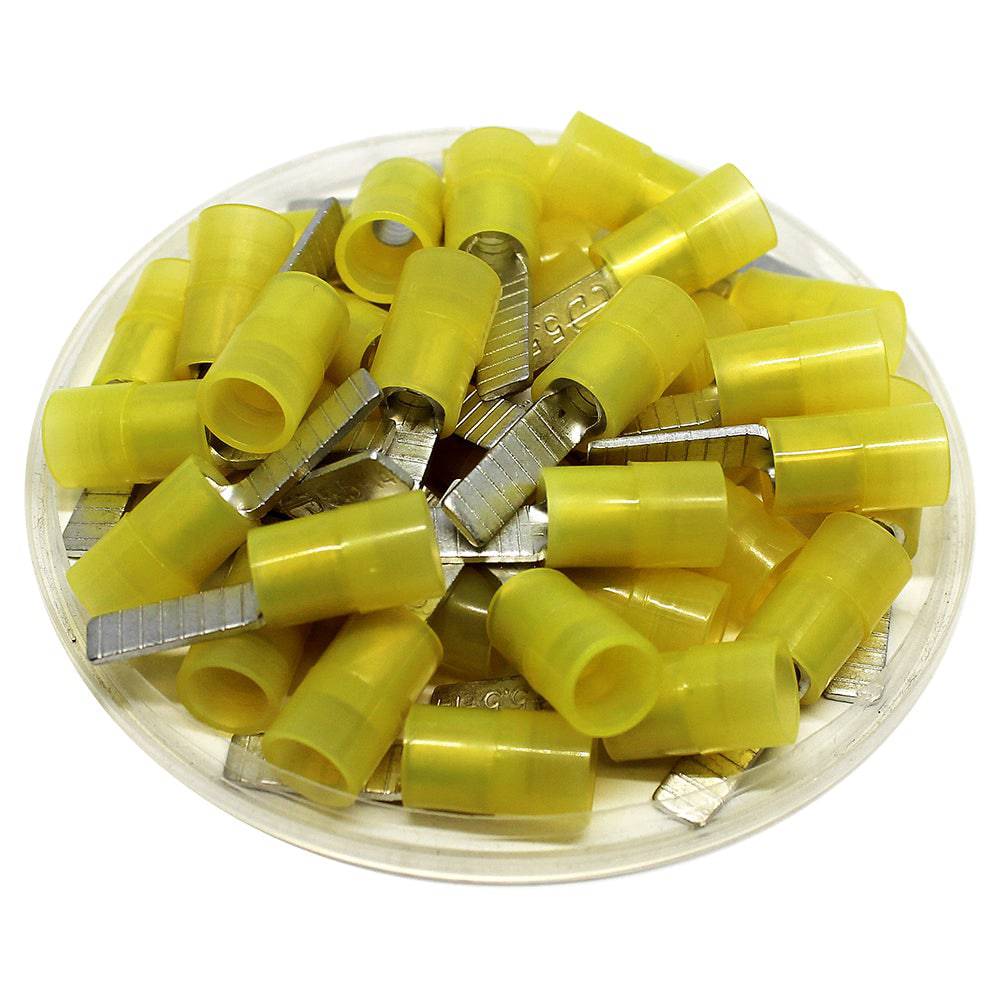

DBNYB5-14 - Nylon Insulated Flat Blade Terminal - 12-10AWG
A flat blade terminal, either insulated or non insulated, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. These terminals are designed to match interconnect requirements for components such as:
Timers
Motors
Valves
Relays
Mechanical Switches
Wire to Wire Harnesses
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Range: | 12-10AWG |
| Insulation: | Nylon |
| Color: | Yellow |
| Type: | Butted Seam |
| Max Electrical Rating: | 105oC |
| Max Electrical Voltage: | 600 Volts |
| Max Electrical Current: | 50AMP |
| T: | 1.0mm (0.04") |
| L: | 27.0mm (1.10") |
| F: | 14.0mm (0.55") |
| E: | 13.0mm (0.51") |
| W: | 4.5mm (0.18") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| UL Recognized: | Yes |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
