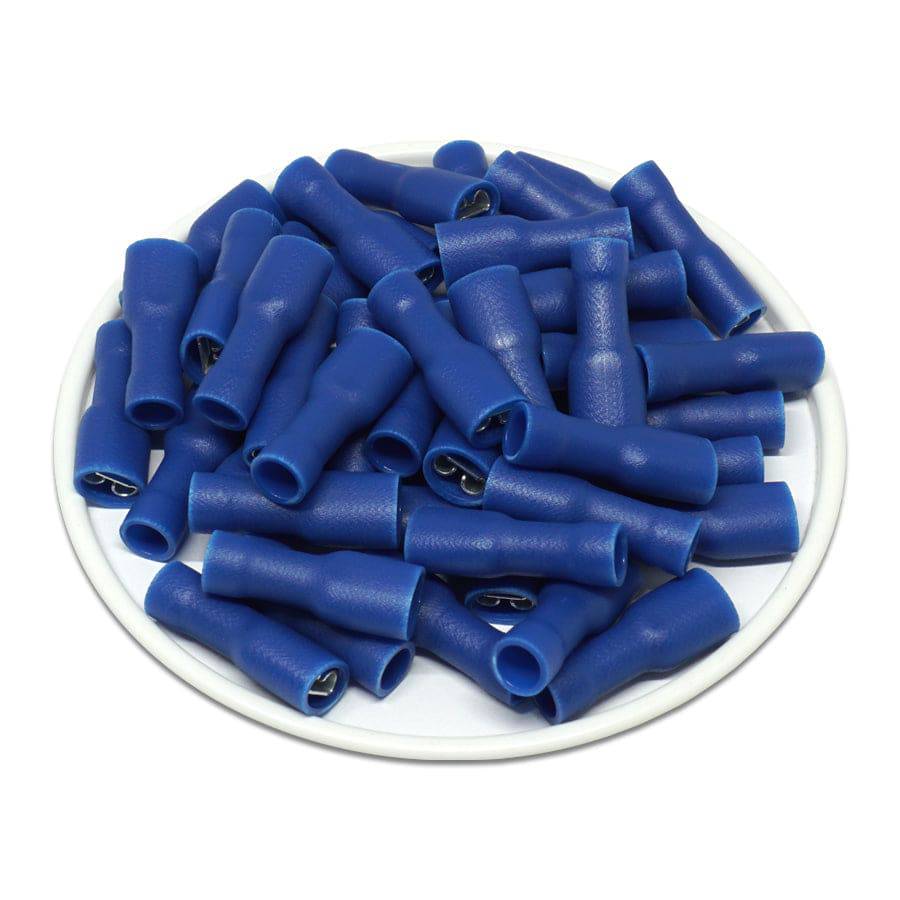

FDFV2-187(8) - 16 to 14 AWG Vinyl PVC Insulated Quick Disconnects, Female, Fully Insulated, 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| W: | 5.0mm (0.20") |
| F: | 6.5mm (0.25") |
| L: | 19.3mm (0.76") |
| B: | 10mm (0.39") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.09") |
| Nema Tab: | 0.8 x 4.8mm (0.032 x 0.187") |
| Terminal Material: | Brass |
| Insulation Material: | Vinyl |
| Insulation Profile: | Oval |
| Electrical Rating: | 75°C - 300 Volts |
| Amp Rating: | 15AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$1.90
Original: $6.34
-70%FDFV2-187(8) - 16 to 14 AWG Vinyl PVC Insulated Quick Disconnects, Female, Fully Insulated, 100 Pieces—
$6.34
$1.90Product Information
