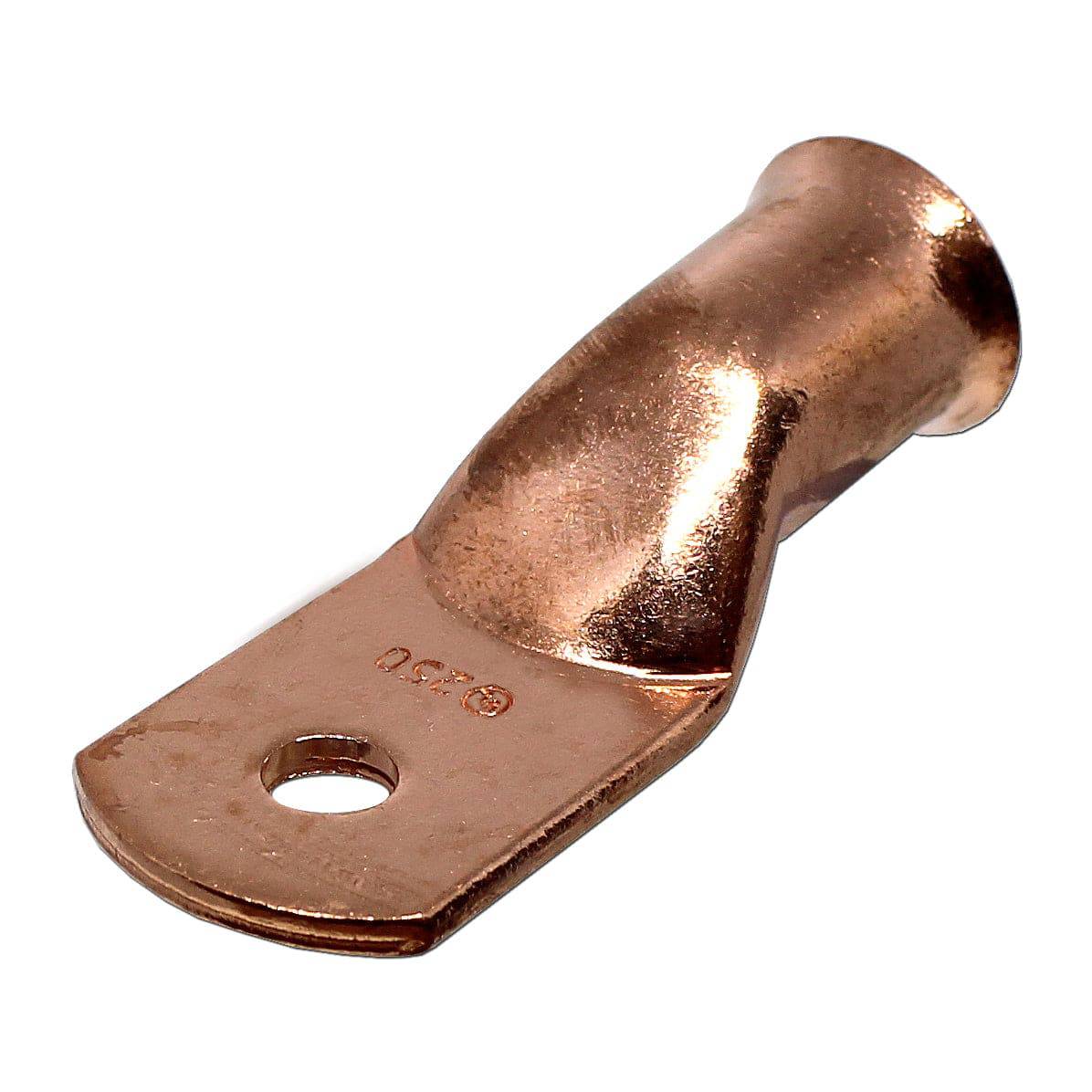

BCL25012 - 250 MCM Copper Battery Cable Lugs, Terminal Lugs, 1/2" Stud, 1 Piece
COPPER BATTERY CABLE LUGS
Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.
- 100% Pure Copper ✓
- Thick & Durable ✓
- UL Approved ✓
- RoHS & REACH Compliant ✓
- CE Certified ✓
DIMENSIONS & FEATURES:
| Wire Size: | 250MCM |
| L: | 68.3mm (2.69") |
| L1: | 14.2mm (0.56") |
| D: | 27.7mm (1.09") |
| D1: | 19.1mm (0.75") |
| D2: | 16mm (0.63") |
| B: | 18.2mm (0.72") |
| E: | 13.1mm (0.52") |
| F: | 3.3mm C (0.13") |
| Terminal Material: | Copper |
| Stud Size: | 1/2" |
| Temperature Rating: |
90°C |
| Voltage Rating: | 35KV |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
DRAWING:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
$4.14
