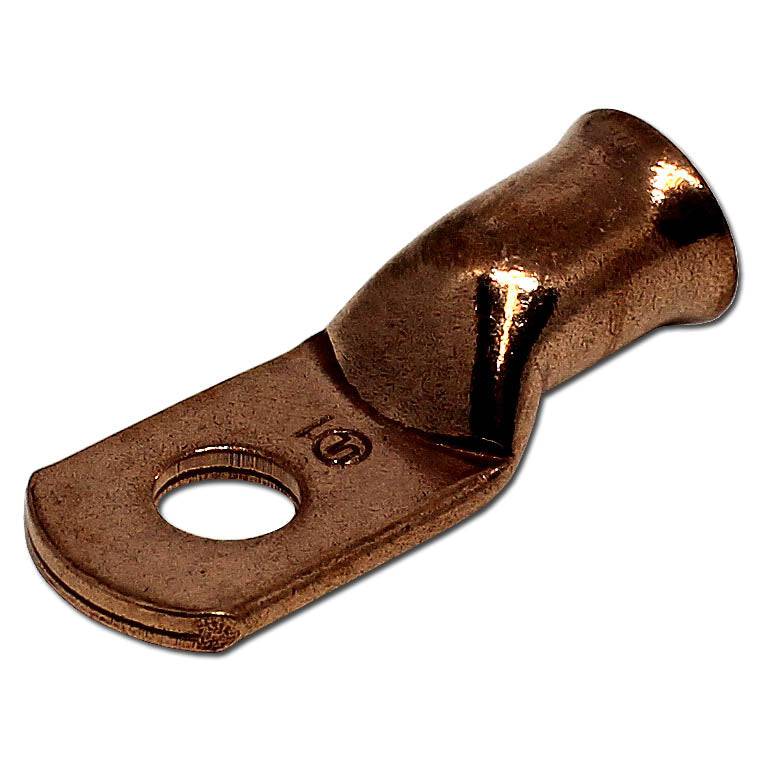

Product image 1
HomeStore

BCL1516 - 1 AWG Copper Battery Cable Lugs, Terminal Lugs, 5/16" Stud, 1 Piece

BCL1516 - 1 AWG Copper Battery Cable Lugs, Terminal Lugs, 5/16" Stud, 1 Piece

COPPER BATTERY CABLE LUGS

Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable.

  • 100% Pure Copper  ✓
  • Thick & Durable ✓
  • UL Approved  ✓
  • RoHS & REACH Compliant ✓
  • CE Certified ✓

DIMENSIONS & FEATURES:

Wire Size: 1 AWG
L: 43.6mm (1.72")
L1: 10.8mm (0.43")
D: 16.4mm (0.65")
D1: 11.7mm (0.46")
D2: 9.1mm (0.36")
B: 16.0mm (0.63")
E: 8.1mm (0.32")
F: 2.5mm (0.10")
Terminal Material: Copper
Stud Size: 5/16"
Temperature Rating: 90°C
Voltage Rating: 35KV
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:



$0.40

Original: $1.33

-70%
BCL1516 - 1 AWG Copper Battery Cable Lugs, Terminal Lugs, 5/16" Stud, 1 Piece—

$1.33

$0.40
