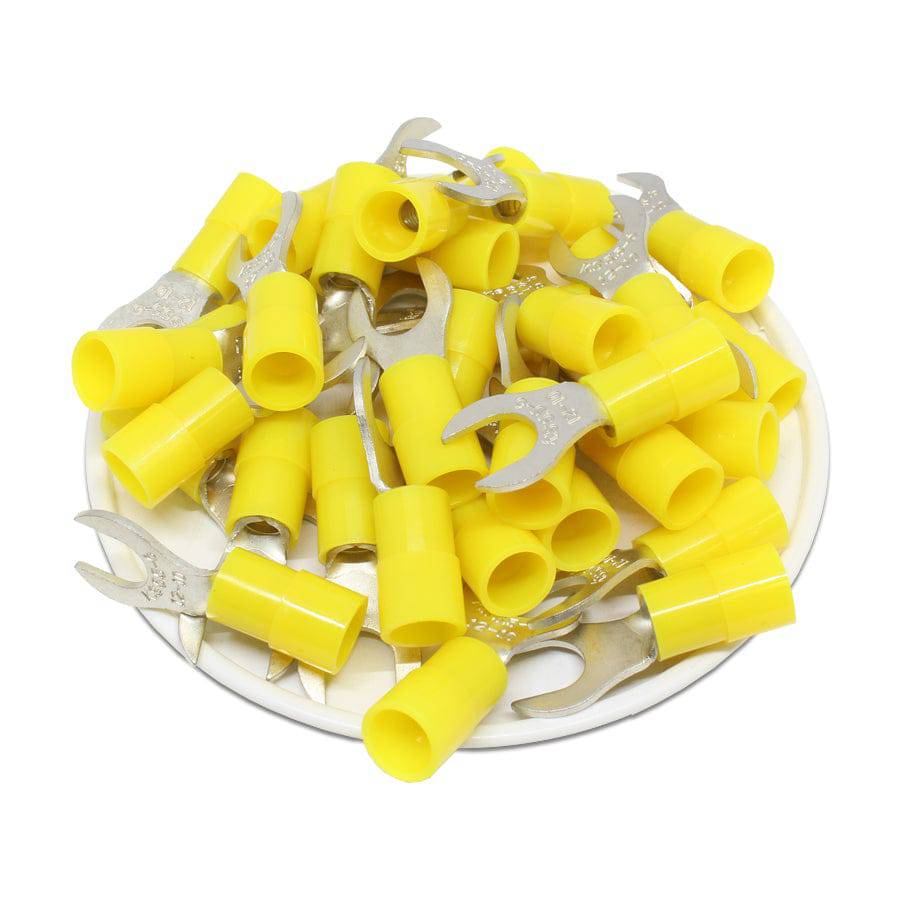

ANYB5-6 - Nylon Insulated Fork Terminals - 12-10 AWG - Yellow - 1/4" Stud
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Yellow |
| D2: | 6.4mm (0.25") |
| W: | 12mm (0.47") |
| F: | 10.5mm (0.41") |
| L: | 28.2mm (1.11") |
| E: | 13mm (0.51") |
| D: | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| T: | 1.0mm (0.04") |
| Material: | Tin Plated Copper |
| Insulation: | Nylon Insulated |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 50 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
Check out our YouTube channel!$4.40
Original: $14.66
-70%ANYB5-6 - Nylon Insulated Fork Terminals - 12-10 AWG - Yellow - 1/4" Stud—
$14.66
$4.40Product Information
