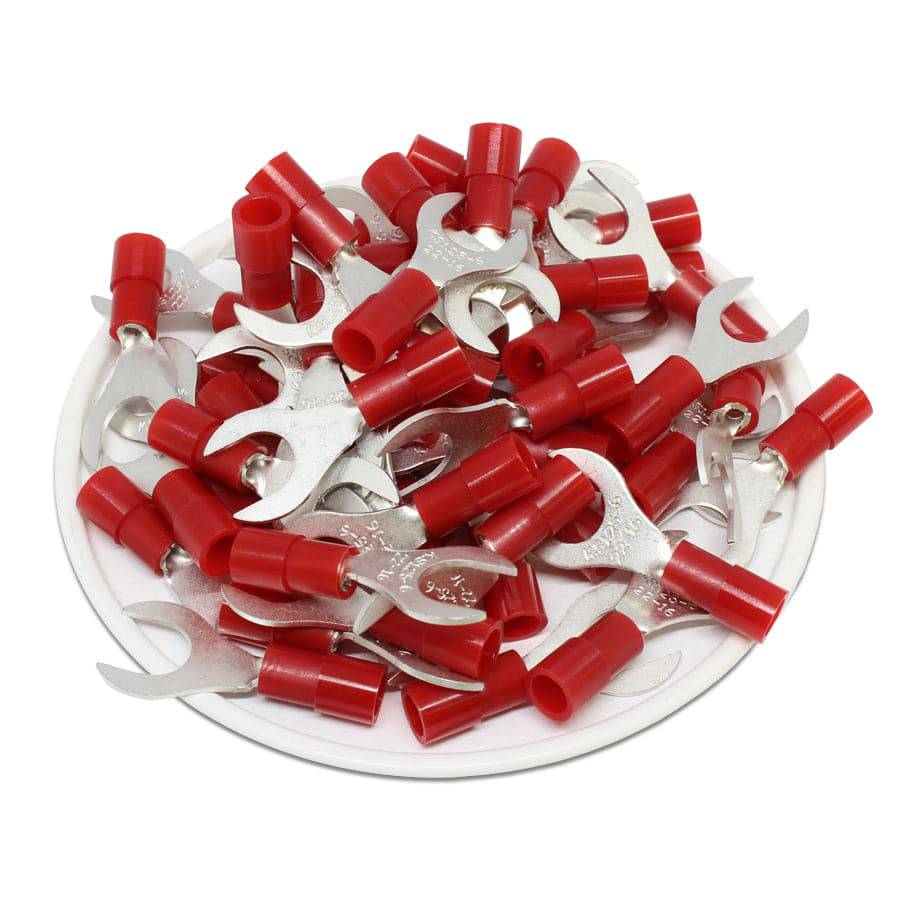

ANYB1-6 - Nylon Insulated Fork Terminal - 22-16 AWG - Red - 1/4" Stud
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Stud Size: | #1/4" Stud |
| Color: | Red |
| D2: | 6.4mm (0.25") |
| W: | 11.6mm (0.46") |
| F: | 11mm (0.43") |
| L: | 26.3mm (1.04") |
| E: | 11mm (0.43") |
| D: | 4.0mm (0.1.7") |
| D1: | 1.7mm (0.07") |
| T: | 0.8mm (0.03") |
| Material: | Tin Plated Copper |
| Insulation: | Nylon Insulated |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
