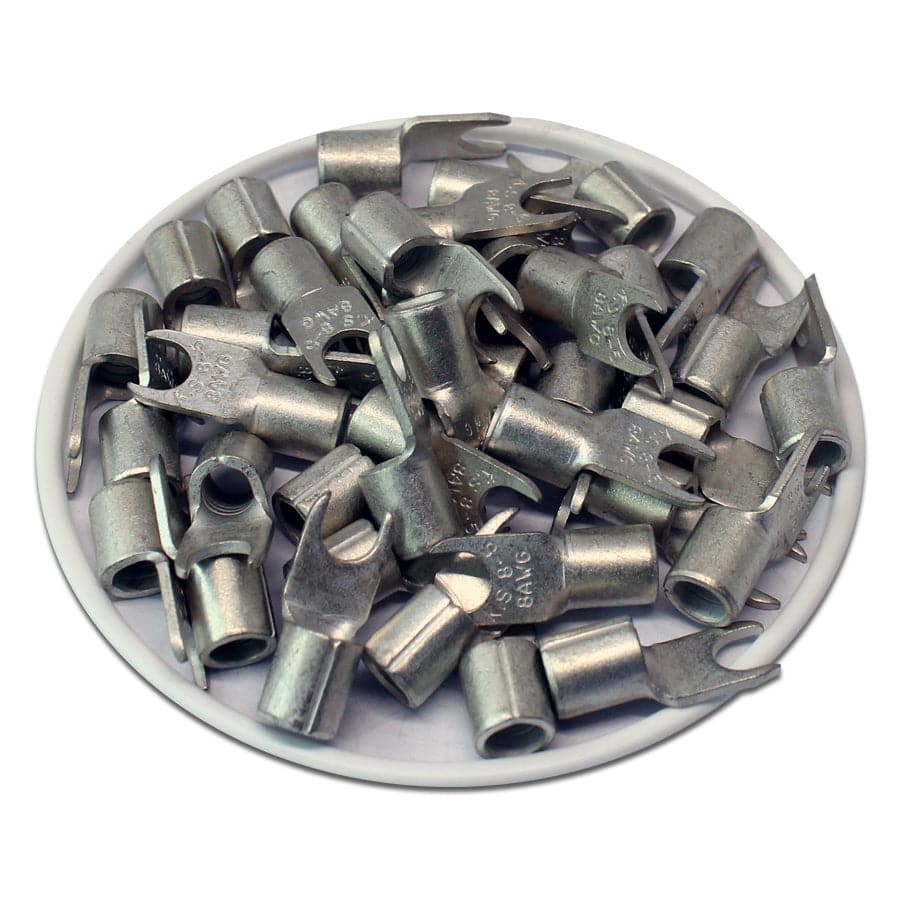

8 AWG Non Insulated Fork Terminals, #10 Stud, 50 Pieces - ANB8-5
NON INSULATED FORK TERMINALS
Fork terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations ensure good wire contact and maximum tensile strength.
DIMENSIONS & FEATURES:
| Wire Size: | 8 AWG |
| Stud Size: | #10 Stud |
| D2: | 5.3mm (0.21") |
| W: | 8.0mm (0.32") |
| F: | 9.3mm (0.37") |
| L: | 20.5mm (0.81") |
| E: | 8.5mm (0.34") |
| D: | 7.2mm (0.28") |
| D1: | 4.5mm (0.18") |
| T: | 1.2mm (0.05") |
| Material: | Tin Plated Copper |
| Seam: | Brazed |
| Electrical Rating: | 105°C - 600 Volts |
| Electrical Current: | 70 AMP |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
Videos
Check out our YouTube channel!
